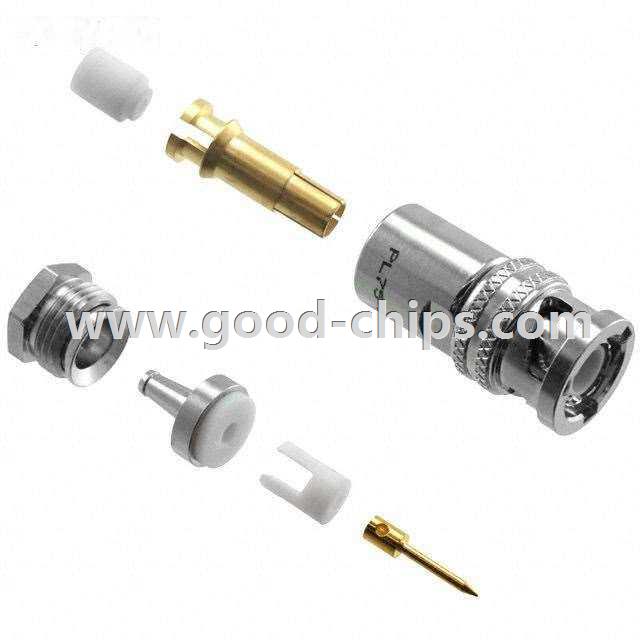

Manufacturer Part Number: | PL75-47 |
---|---|
Manufacturer: | Bel Power Solutions |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9871 Pieces |
Unit Price: | Quote by Email |
Description: | TRB, Twinaxial/Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PL75-47 Datasheet |
Internal Part Number | 898-PL75-47 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Configured Solutions Video Patching | |
Online Catalog | TRB | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Cinch Connectivity Solutions Trompeter | |
Series | 70 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | TRB, Twinaxial/Triaxial | |
Connector Type | Plug, Male Pin (Concentric) | |
Contact Termination | Solder | |
Shield Termination | Wrench Clamp | |
Impedance | Non-Constant | |
Mounting Type | Free Hanging (In-Line) | |
Cable Group | M17/176-00002 | |
Fastening Type | Bayonet Lock | |
Frequency - Max | 500MHz | |
Features | Three Lug | |
Housing Color | Silver | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | Beryllium Copper | |
Center Contact Plating | Gold | |
Dielectric Material | - | |
Voltage Rating | 400V | |
Operating Temperature | -65°C ~ 165°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PL75-47 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PL75-47 is in stock for immediate shipping now. We are the distributor of Bel Power Solutions all series components. The condition of PL75-47 is new and unused, you can buy PL75-47 Bel Power Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PL75-47.
