| Manufacturer Part Number: | PL685-P8-028OC |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC CLK BUFFER LVPECL 16TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PL685-P8-028OC Datasheet |
| Internal Part Number | 898-PL685-P8-028OC | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Mfg Application Notes | Clock System Design High-Speed PECL and LVPECL Termination | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Clock Generators, PLLs, Frequency Synthesizers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Discontinued | |
| Type | * | |
| PLL | Yes with Bypass | |
| Input | LVPECL, Crystal | |
| Output | PECL | |
| Number of Circuits | 1 | |
| Ratio - Input:Output | 1:2 | |
| Differential - Input:Output | No/No | |
| Frequency - Max | 84.375MHz | |
| Divider/Multiplier | Yes/Yes | |
| Voltage - Supply | 2.97 V ~ 3.63 V | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Surface Mount | |

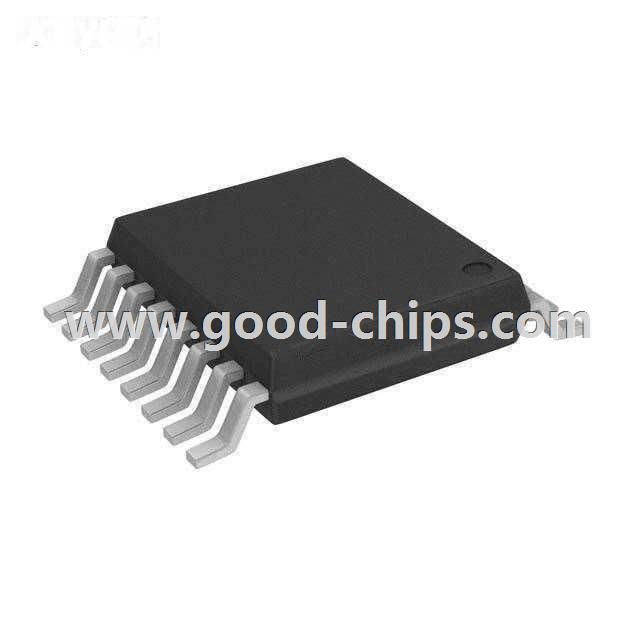

| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | 16-TSSOP | |
| Standard Package | 96 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PL685-P8-028OC | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PL685-P8-028OC is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of PL685-P8-028OC is new and unused, you can buy PL685-P8-028OC Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PL685-P8-028OC.
