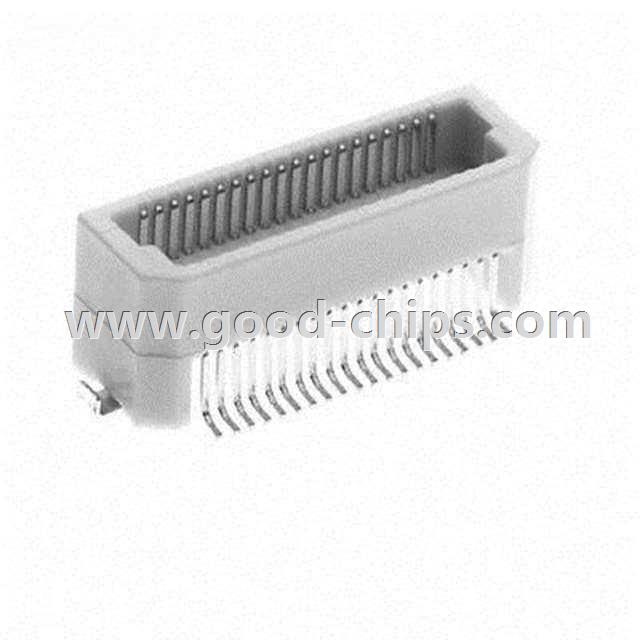

| Manufacturer Part Number: | PK5-120S-CLT-3-GGF |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 120 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PK5-120S-CLT-3-GGF Datasheet |
| Internal Part Number | 898-PK5-120S-CLT-3-GGF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Interconnect Mating Guide | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | 3M | |
| Series | Pak 5, PK5 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Connector Type | Socket, Outer Shroud Contacts | |
| Number of Positions | 120 | |
| Pitch | 0.020" (0.50mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 2µin (0.05µm) | |
| Mated Stacking Heights | 5mm, 7mm | |
| Height Above Board | 0.159" (4.04mm) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PK5-120S-CLT-3-GGF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PK5-120S-CLT-3-GGF is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of PK5-120S-CLT-3-GGF is new and unused, you can buy PK5-120S-CLT-3-GGF 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PK5-120S-CLT-3-GGF.
