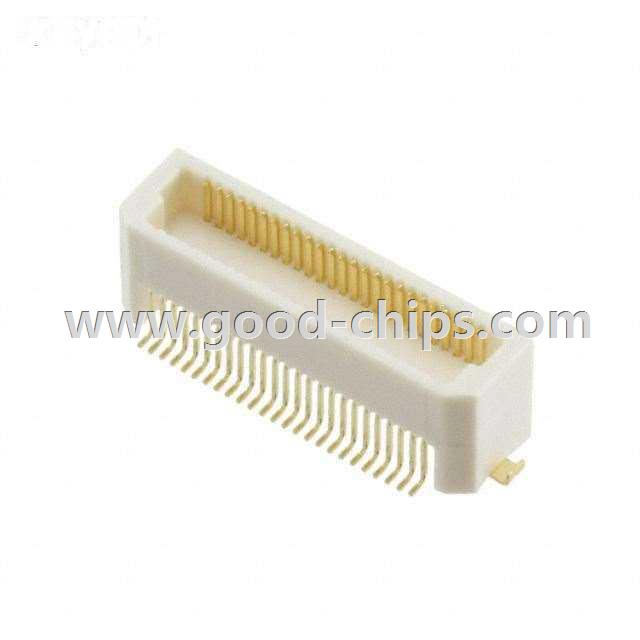

Manufacturer Part Number: | PK5-050S-CLT-4-GGF |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 50 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PK5-050S-CLT-4-GGF Datasheet |
Internal Part Number | 898-PK5-050S-CLT-4-GGF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Interconnect Mating Guide | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | 3M | |
Series | Pak 5, PK5 | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Connector Type | Socket, Outer Shroud Contacts | |
Number of Positions | 50 | |
Pitch | 0.020" (0.50mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide, Solder Retention | |
Contact Finish | Gold | |
Contact Finish Thickness | 2µin (0.05µm) | |
Mated Stacking Heights | 6mm, 8mm | |
Height Above Board | 0.198" (5.02mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PK5-050S-CLT-4-GGF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PK5-050S-CLT-4-GGF is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of PK5-050S-CLT-4-GGF is new and unused, you can buy PK5-050S-CLT-4-GGF 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PK5-050S-CLT-4-GGF.
