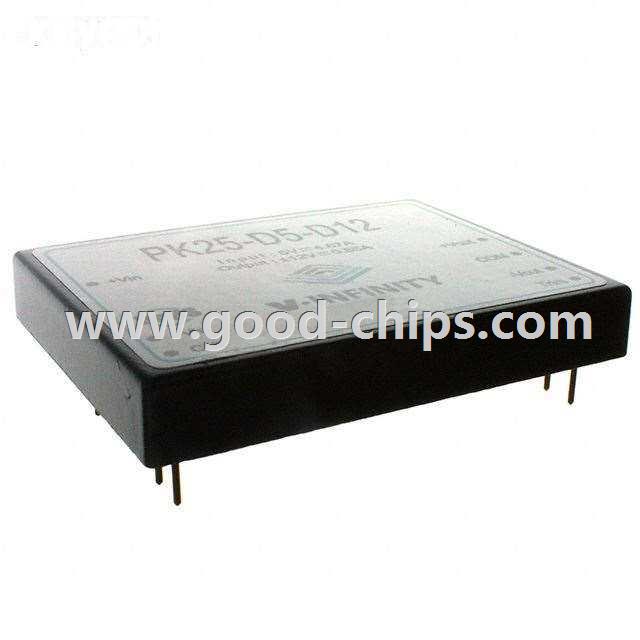

| Manufacturer Part Number: | PK25-D5-D12 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC +/-12V OUT 25.2W |
| Lead Free Status / RoHS Status: | Vendor undefined / Vendor undefined |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PK25-D5-D12 Datasheet |
| Internal Part Number | 898-PK25-D5-D12 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PK25-D5-D12 Cert of Compliance | |
| PCN Obsolescence/ EOL | PK15, PK25 Series 26/Nov/2012 | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | PK25 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Isolated Module | |
| Number of Outputs | 2 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 9V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | -12V | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 850mA, 850mA | |
| Power (Watts) - Manufacture Series | 25W | |
| Voltage - Isolation | 500V | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OVP | |
| Mounting Type | Through Hole | |
| Package / Case | 7-DIP Module | |
| Size / Dimension | 2.56" L x 2.00" W x 0.38" H (65.0mm x 50.8mm x 9.7mm) | |
| Operating Temperature | -20°C ~ 71°C | |
| Efficiency | 77% | |
| Power (Watts) - Max | 20.4W | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PK25-D5-D12 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PK25-D5-D12 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PK25-D5-D12 is new and unused, you can buy PK25-D5-D12 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PK25-D5-D12.
