| Manufacturer Part Number: | PK10-080P-S-DA |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

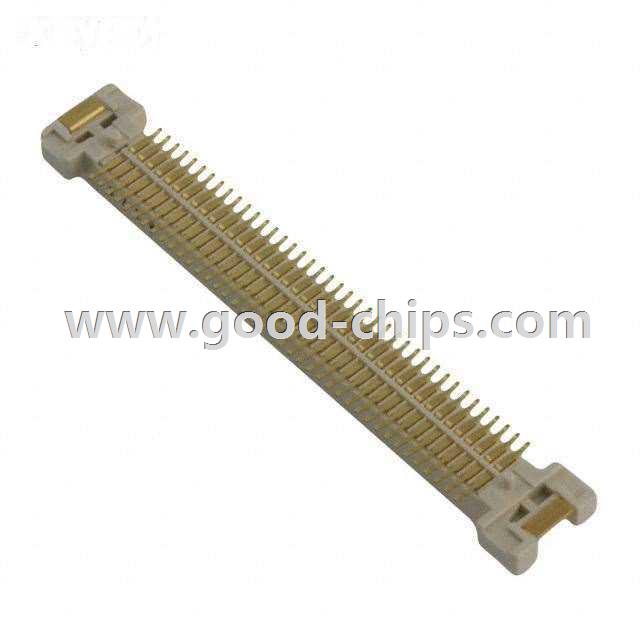

| Description: | 80 Position Connector Plug, Center Strip Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PK10-080P-S-DA Datasheet |
| Internal Part Number | 898-PK10-080P-S-DA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Connectors, Interconnects | ||
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | 3M | |
| Series | Pak 10, PK10 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug, Center Strip Contacts | |
| Number of Positions | 80 | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 2µin (0.05µm) | |
| Mated Stacking Heights | 5mm | |
| Height Above Board | 0.154" (3.90mm) | |
| Standard Package | 120 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PK10-080P-S-DA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PK10-080P-S-DA is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of PK10-080P-S-DA is new and unused, you can buy PK10-080P-S-DA 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PK10-080P-S-DA.
