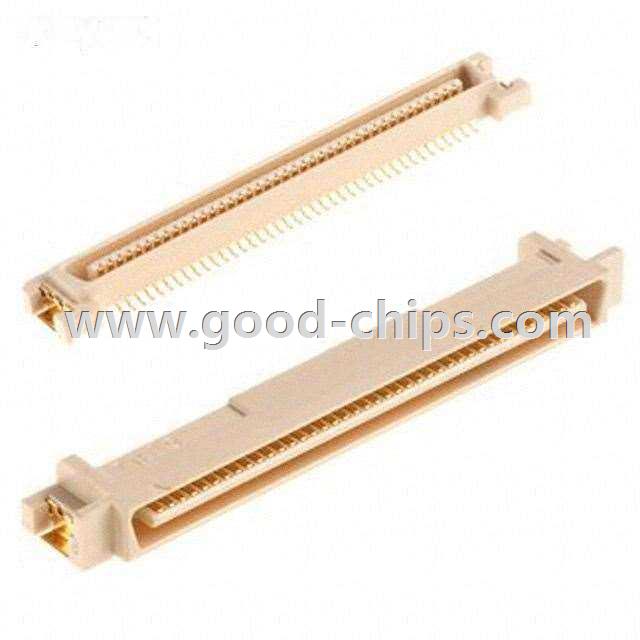

Manufacturer Part Number: | PK10-050P-S-DA |
---|---|
Manufacturer: | 3M |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 50 Position Connector Plug, Center Strip Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PK10-050P-S-DA Datasheet |
Internal Part Number | 898-PK10-050P-S-DA | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Interconnect Mating Guide | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | 3M | |
Series | Pak 10, PK10 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Plug, Center Strip Contacts | |
Number of Positions | 50 | |
Pitch | 0.039" (1.00mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide, Solder Retention | |
Contact Finish | Gold | |
Contact Finish Thickness | 2µin (0.05µm) | |
Mated Stacking Heights | 5mm | |
Height Above Board | 0.154" (3.90mm) | |
Standard Package | 160 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PK10-050P-S-DA | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PK10-050P-S-DA is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of PK10-050P-S-DA is new and unused, you can buy PK10-050P-S-DA 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PK10-050P-S-DA.
