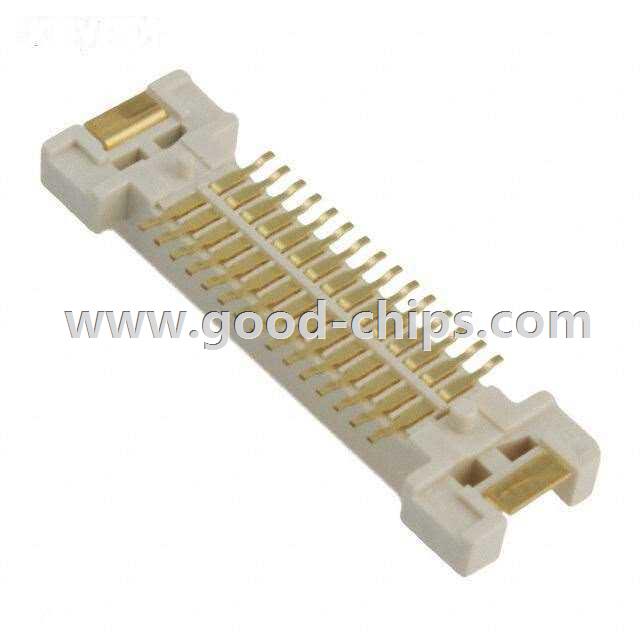

PK10-030P-S-DA

PK10-030P-S-DA
Manufacturer Part Number:PK10-030P-S-DA
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:30 Position Connector Plug, Center Strip Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PK10-030P-S-DA Datasheet
PK10-030P-S-DA´s Parameters
Category
Internal Part Number898-PK10-030P-S-DA
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
  • PK10-030S-R-DA-ND
  • 3M
  • CONN SOCKET 30POS VERT 1MM SMDUnit Price3.38000
  • PK10-030S-S-DA-ND
  • 3M
  • CONN SOCKET 30POS VERT 1MM SMDUnit Price4.18000
  • PK10-030SM-S-DA-ND
  • 3M
  • CONN SOCKET 30POS 1MM VERT SMDUnit Price4.54000
  • Connectors, Interconnects
    FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
    Manufacturer3M
    SeriesPak 10, PK10
    PackagingBulk
    Part StatusActive
    Connector TypePlug, Center Strip Contacts
    Number of Positions30
    Pitch0.039" (1.00mm)
    Number of Rows2
    Mounting TypeSurface Mount
    FeaturesBoard Guide, Solder Retention
    Contact FinishGold
    Contact Finish Thickness2µin (0.05µm)
    Mated Stacking Heights5mm
    Height Above Board0.154" (3.90mm)
    Standard Package 160
    Weight0.001 KG
    ApplicationEmail for details
    Replacement PartPK10-030P-S-DA
    Country of OriginUSA / JAPAN / Philippines / Malaysia
    MOQ1 Piece
    Picture / Image / PhotoSend via email

    PK10-030P-S-DA is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of PK10-030P-S-DA is new and unused, you can buy PK10-030P-S-DA 3M with us at a very low price and quick delivery.

    Please kindly send us an email if you have any demands for PK10-030P-S-DA.
