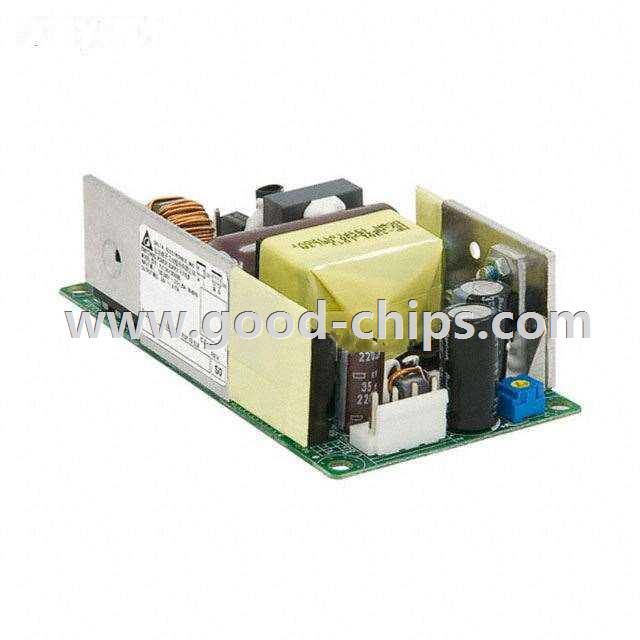

| Manufacturer Part Number: | PJT-24V100WBBA |
|---|---|
| Manufacturer: | Delta Electronics |
| Product Category: | AC DC Converters |
| Available Quantity: | 9033 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 24V 80W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PJT-24V100WBBA Datasheet |
| Internal Part Number | 898-PJT-24V100WBBA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | PJT-xxV100WBB CB Test Cert PJT-xxV100WBB EC Declaration of Conformity PJT-24V100WBB TUV Cert Standard Power Supplies UL Cert | |
| Product Training Modules | PJT Series of Open Frame Power Supplies | |
| Featured Product | PJT Series Power Supplies Power Management Solutions | |
| 3D Model | PJT-24V100WBBA.stp | |
| 2D Drawing | PJT-24V100WBBA.dxf | |
| Online Catalog | PJT Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Delta Electronics | |
| Series | PJT | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 1 | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 3.33A | |
| Power (Watts) | 80W (100W Forced Air) | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 89% | |
| Operating Temperature | -10°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 4.00" L x 2.00" W x 1.25" H (101.6mm x 50.8mm x 31.8mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CE, cURus, TUV | |
| Power (Watts) - Max | 80W (100W Forced Air) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PJT-24V100WBBA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PJT-24V100WBBA is in stock for immediate shipping now. We are the distributor of Delta Electronics all series components. The condition of PJT-24V100WBBA is new and unused, you can buy PJT-24V100WBBA Delta Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PJT-24V100WBBA.
