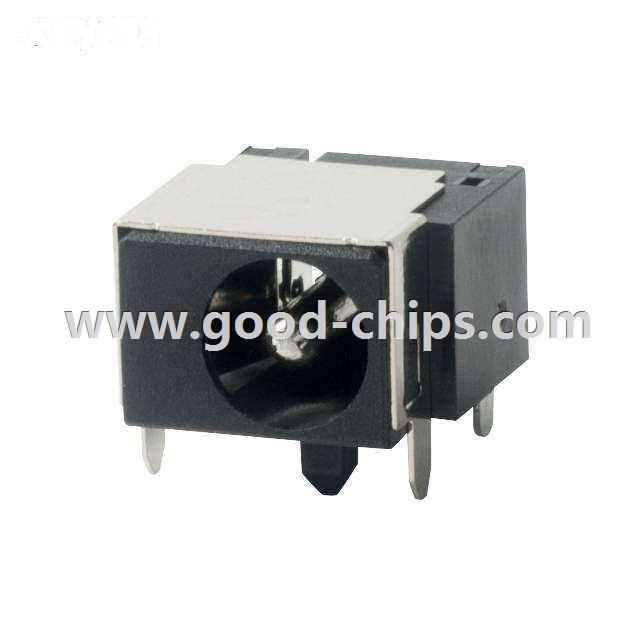

| Manufacturer Part Number: | PJ-076B |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Barrel - Power Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN PWR JACK R/A PCB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PJ-076B Datasheet |
| Internal Part Number | 898-PJ-076B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | PJ-076B | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Power Connectors | |
| Manufacturer | CUI Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Jack | |
| Gender | Male | |
| Industry Recognized Mating Diameter | 2.50mm ID (0.098"), 5.50mm OD (0.217") | |
| Actual Diameter | 0.098" (2.50mm ID), 0.236" (6.00mm OD) | |
| Number of Positions/Contacts | 3 Conductors, 4 Contacts | |
| Internal Switch(s) | Single Switch, Normally Closed | |
| Mounting Type | Through Hole, Right Angle | |
| Mounting Feature | - | |
| Termination | Solder | |
| Shielding | Shielded | |
| Features | Board Guide | |
| Insulation Color | - | |
| Voltage - Rated | 24VDC | |
| Current Rating | 2.5A | |
| Mating Length/Depth | 0.323" (8.20mm) | |
| Contact Material - Plating | Tin | |
| Body Material | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Includes | 1 pc - 1 Connector | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PJ-076B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PJ-076B is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PJ-076B is new and unused, you can buy PJ-076B CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PJ-076B.
