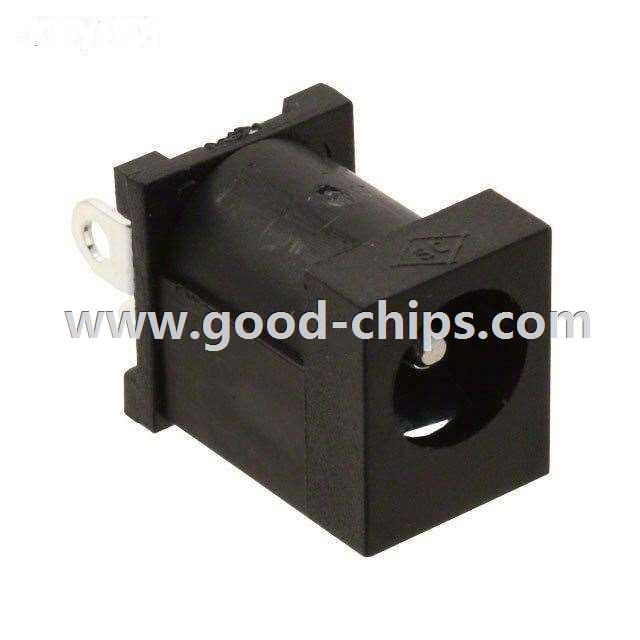

Manufacturer Part Number: | PJ-060A |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Barrel - Power Connectors |
Available Quantity: | 12845 Pieces |
Unit Price: | Quote by Email |
Description: | CONN POWER JACK 2.1X5.5MM VERT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PJ-060A Datasheet |
Internal Part Number | 898-PJ-060A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | PJ-060A Cert of Compliance | |
3D Model | PJ-060A | |
Online Catalog | CUI Inc | |
Category | Connectors, Interconnects | |
Family | Barrel - Power Connectors | |
Manufacturer | CUI Inc. | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Jack | |
Gender | Male | |
Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") | |
Actual Diameter | 0.078" (2.00mm ID), 0.248" (6.30mm OD) | |
Number of Positions/Contacts | 2 Conductors, 3 Contacts | |
Internal Switch(s) | Single Switch, Normally Closed | |
Mounting Type | Through Hole | |
Mounting Feature | - | |
Termination | Solder Eyelet(s) | |
Shielding | Unshielded | |
Features | - | |
Insulation Color | - | |
Voltage - Rated | 16VDC | |
Current Rating | 2A | |
Mating Length/Depth | - | |
Contact Material - Plating | Tin | |
Body Material | - | |
Operating Temperature | -25°C ~ 85°C | |
Includes | 1 pc - 1 Connector | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PJ-060A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PJ-060A is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PJ-060A is new and unused, you can buy PJ-060A CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PJ-060A.
