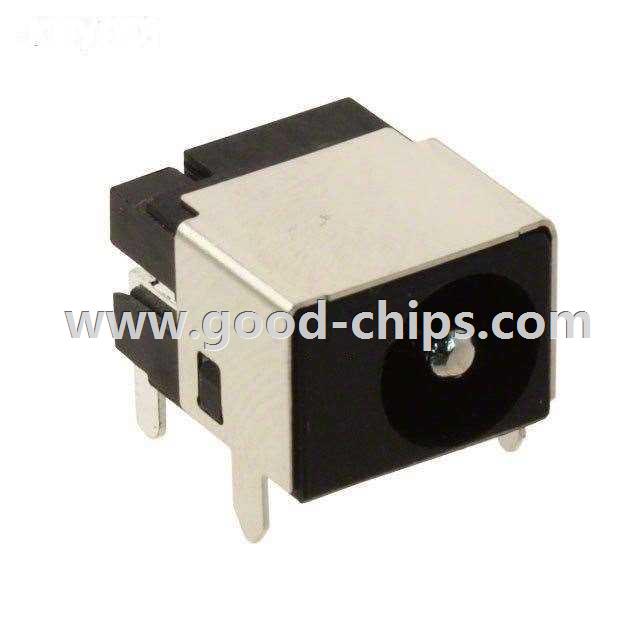

Manufacturer Part Number: | PJ-051A |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Barrel - Power Connectors |
Available Quantity: | 13645 Pieces |
Unit Price: | Quote by Email |
Description: | CON PWR JCK 2.0 X 6.0MM W/SHLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PJ-051A Datasheet |
Internal Part Number | 898-PJ-051A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | PJ-051A Cert of Compliance | |
3D Model | PJ-051A | |
PCN Design/Specification | Multiple Devices Plating 19/Sep/2014 | |
Online Catalog | CUI Inc | |
Category | Connectors, Interconnects | |
Family | Barrel - Power Connectors | |
Manufacturer | CUI Inc. | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Jack | |
Gender | Male | |
Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") | |
Actual Diameter | 0.078" (2.00mm ID), 0.236" (6.00mm OD) | |
Number of Positions/Contacts | 2 Conductors, 3 Contacts | |
Internal Switch(s) | Single Switch, Normally Closed | |
Mounting Type | Through Hole, Right Angle | |
Mounting Feature | - | |
Termination | Solder | |
Shielding | Shielded | |
Features | Board Guide | |
Insulation Color | - | |
Voltage - Rated | 24VDC | |
Current Rating | 2.5A | |
Mating Length/Depth | 0.323" (8.20mm) | |
Contact Material - Plating | Tin | |
Body Material | - | |
Operating Temperature | -25°C ~ 85°C | |
Includes | 1 pc - 1 Connector | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PJ-051A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PJ-051A is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PJ-051A is new and unused, you can buy PJ-051A CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PJ-051A.
