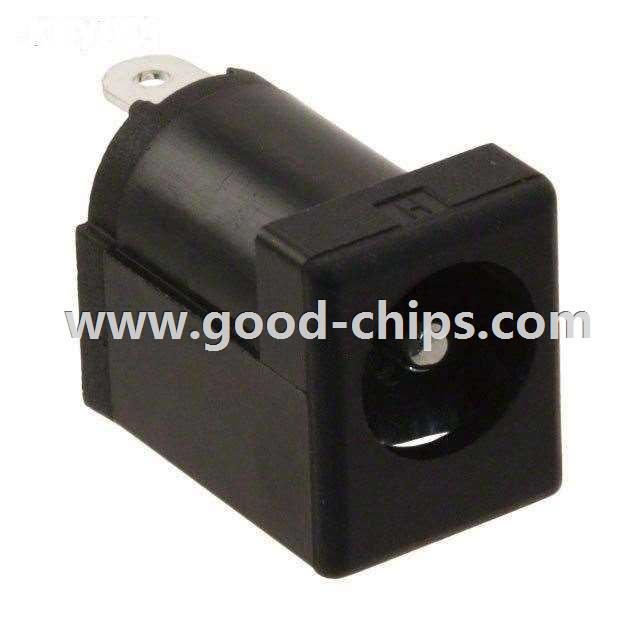

PJ-044A

PJ-044A
Manufacturer Part Number:PJ-044A
Manufacturer:
Product Category:Barrel - Power Connectors
Available Quantity:13782 Pieces
Unit Price:Quote by Email
Description:CON PWR JCK 2.0 X 6.5MM VERT
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PJ-044A Datasheet
PJ-044A´s Parameters
Internal Part Number898-PJ-044A
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationPJ-044A Cert of Compliance
3D ModelPJ-044A
PCN Design/SpecificationMultiple Devices Plating 19/Sep/2014
Online Catalog CUI Inc
CategoryConnectors, Interconnects
FamilyBarrel - Power Connectors
ManufacturerCUI Inc.
Series-
PackagingBulk
Part StatusActive
Connector TypeJack
GenderMale
Industry Recognized Mating Diameter2.00mm ID (0.079"), 5.50mm OD (0.217")
Actual Diameter0.078" (2.00mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts2 Conductors, 3 Contacts
Internal Switch(s)Single Switch, Normally Closed
Mounting TypeThrough Hole
Mounting Feature-
TerminationSolder Eyelet(s)
ShieldingUnshielded
FeaturesBoard Guide
Insulation Color-
Voltage - Rated24VDC
Current Rating2.5A
Mating Length/Depth0.354" (9.00mm)
Contact Material - PlatingTin
Body Material-
Operating Temperature-25°C ~ 85°C
Includes1 pc - 1 Connector
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement PartPJ-044A
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PJ-044A is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PJ-044A is new and unused, you can buy PJ-044A CUI Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PJ-044A.
