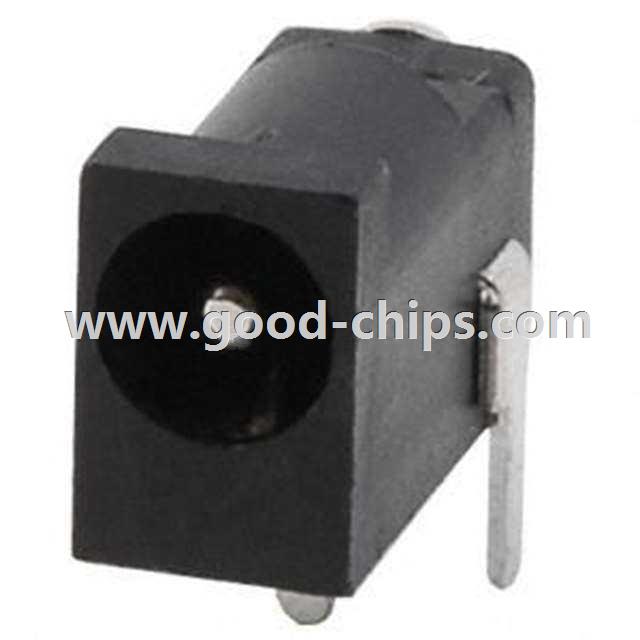

PJ-031D

PJ-031D
Manufacturer Part Number:PJ-031D
Manufacturer:
Product Category:Barrel - Power Connectors
Available Quantity:13743 Pieces
Unit Price:Quote by Email
Description:CON PWR JCK 1.3 X 4.2MM
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PJ-031D Datasheet
PJ-031D´s Parameters
Internal Part Number898-PJ-031D
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationPJ-031D Cert of Compliance
3D ModelPJ-031D
PCN Design/SpecificationMultiple Devices Plating 19/Sep/2014
Online Catalog CUI Inc
CategoryConnectors, Interconnects
FamilyBarrel - Power Connectors
ManufacturerCUI Inc.
Series-
PackagingBulk
Part StatusActive
Connector TypeJack
GenderMale
Industry Recognized Mating Diameter1.30mm ID (0.051"), 3.50mm OD (0.138")
Actual Diameter0.051" (1.30mm ID), 0.165" (4.20mm OD)
Number of Positions/Contacts2 Conductors, 3 Contacts
Internal Switch(s)Single Switch, Normally Closed
Mounting TypeThrough Hole, Right Angle
Mounting Feature-
TerminationSolder
ShieldingUnshielded
Features-
Insulation Color-
Voltage - Rated24VDC
Current Rating2A
Mating Length/Depth0.260" (6.60mm)
Contact Material - PlatingTin
Body Material-
Operating Temperature-25°C ~ 85°C
Includes1 pc - 1 Connector
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement PartPJ-031D
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PJ-031D is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PJ-031D is new and unused, you can buy PJ-031D CUI Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PJ-031D.
