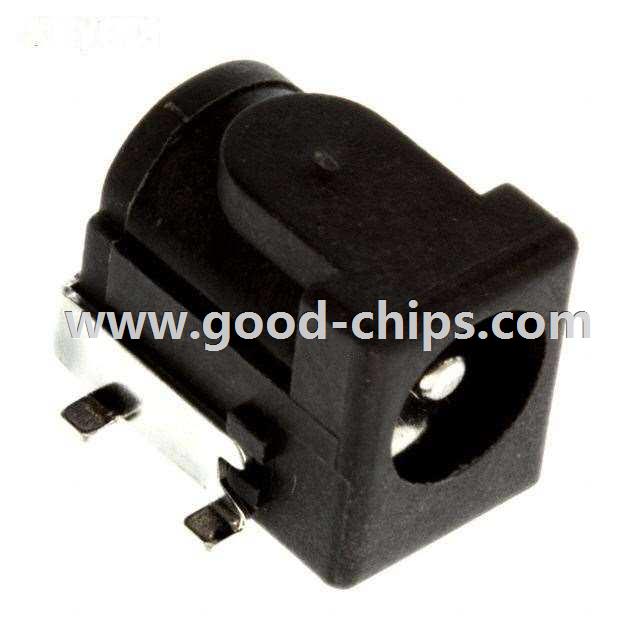

| Manufacturer Part Number: | PJ-002A-SMT-1 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Barrel - Power Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN POWER JACK 2.1MM SMD |
| Lead Free Status / RoHS Status: | Lead free by exemption / RoHS compliant by exemption |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PJ-002A-SMT-1 Datasheet |
| Internal Part Number | 898-PJ-002A-SMT-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Barrel - Power Connectors | |
| Manufacturer | CUI Inc. | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Connector Type | Jack | |
| Gender | Male | |
| Industry Recognized Mating Diameter | 2.00mm ID (0.079"), 5.50mm OD (0.217") | |
| Actual Diameter | 0.078" (2.00mm ID), 0.256" (6.50mm OD) | |
| Number of Positions/Contacts | 2 Conductors, 3 Contacts | |
| Internal Switch(s) | Single Switch, Normally Closed | |
| Mounting Type | Surface Mount | |
| Mounting Feature | - | |
| Termination | Solder | |
| Shielding | Unshielded | |
| Features | Board Guide | |
| Insulation Color | - | |
| Voltage - Rated | 16VDC | |
| Current Rating | 2.5A | |
| Mating Length/Depth | - | |
| Contact Material - Plating | Silver | |
| Body Material | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Includes | 1 pc - 1 Connector | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PJ-002A-SMT-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PJ-002A-SMT-1 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PJ-002A-SMT-1 is new and unused, you can buy PJ-002A-SMT-1 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PJ-002A-SMT-1.
