| Manufacturer Part Number: | PIP3102-R,118 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | PMIC - Power Distribution Switches, Load Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 50V 30A SOT426 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PIP3102-R,118 Datasheet |
| Internal Part Number | 898-PIP3102-R,118 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Power Distribution Switches, Load Drivers | |
| Manufacturer | NXP Semiconductors | |
| Series | TOPFET™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Switch Type | General Purpose | |
| Number of Outputs | 1 | |
| Ratio - Input:Output | 1:1 | |
| Output Configuration | Low Side | |
| Output Type | N-Channel | |
| Interface | On/Off | |
| Voltage - Load | 50V (Max) | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Current - Output (Max) | 30A | |
| Rds On (Typ) | 21 mOhm | |
| Input Type | Non-Inverting | |
| Features | Status Flag | |
| Fault Protection | Current Limiting (Fixed), Over Temperature, Over Voltage | |
| Operating Temperature | - | |

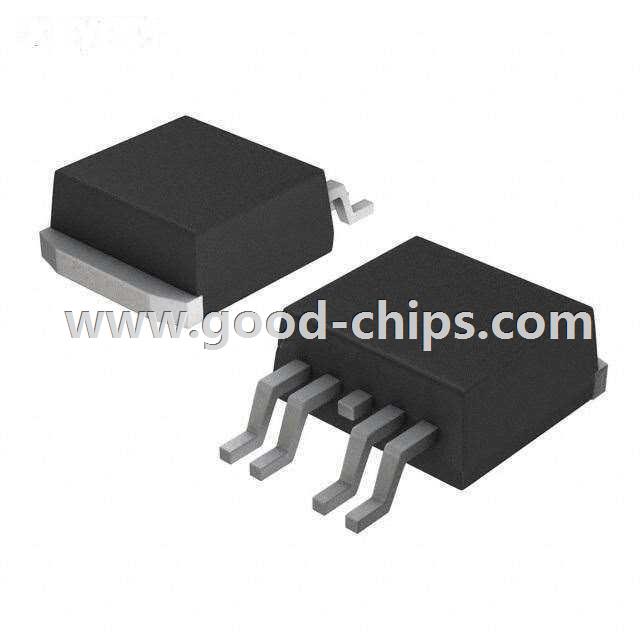

| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | |
| Supplier Device Package | SOT-426 | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PIP3102-R,118 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PIP3102-R,118 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PIP3102-R,118 is new and unused, you can buy PIP3102-R,118 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PIP3102-R,118.
