| Manufacturer Part Number: | PIC32MZ1024EFH144T-I/PH |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MIPS32® M-Class PIC® 32MZ Microcontroller IC 32-Bit 200MHz 1MB (1M x 8) FLASH 144-TQFP (16x16) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PIC32MZ1024EFH144T-I/PH Datasheet |
| Internal Part Number | 898-PIC32MZ1024EFH144T-I/PH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Featured Product | PIC32MZ EF Series MCUs | |
| PCN Design/Specification | Errata Update 31/Jul/2015 New DeviceDoc 04/Mar/2016 New DeviceDoc 25/Apr/2016 PIC32MZ DataSheet Chg 12/Jul/2016 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Microchip Technology | |
| Series | PIC® 32MZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Core Processor | MIPS32® M-Class | |
| Core Size | 32-Bit | |
| Speed | 200MHz | |
| Connectivity | CAN, EBI/EMI, Ethernet, I²C, PMP, SPI, SQI, UART/USART, USB OTG | |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | |
| Number of I/O | 120 | |
| Program Memory Size | 1MB (1M x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 512K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2.1 V ~ 3.6 V | |
| Data Converters | A/D 48x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

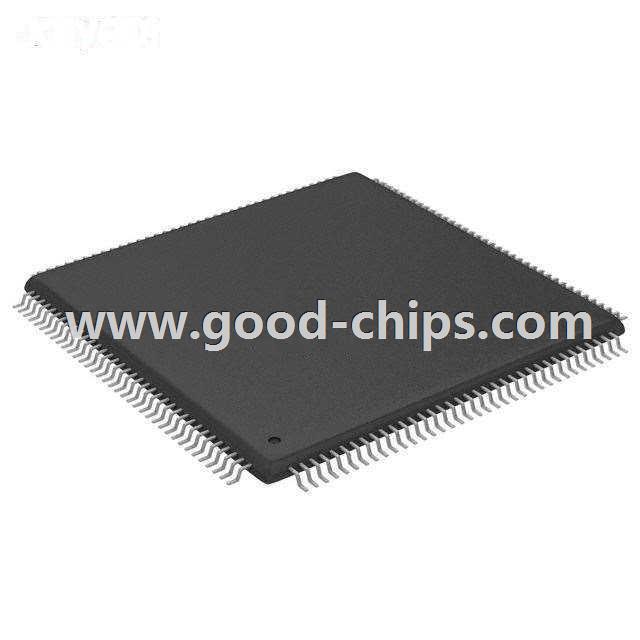

| Package / Case | 144-TQFP | |
| Supplier Device Package | 144-TQFP (16x16) | |
| Standard Package | 900 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PIC32MZ1024EFH144T-I/PH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PIC32MZ1024EFH144T-I/PH is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of PIC32MZ1024EFH144T-I/PH is new and unused, you can buy PIC32MZ1024EFH144T-I/PH Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PIC32MZ1024EFH144T-I/PH.
