| Manufacturer Part Number: | PIC18LF45J11T-I/ML |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | PIC PIC® XLP™ 18J Microcontroller IC 8-Bit 48MHz 32KB (16K x 16) FLASH 44-QFN (8x8) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PIC18LF45J11T-I/ML Datasheet |
| Internal Part Number | 898-PIC18LF45J11T-I/ML | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Design/Specification | Plating 04/Jun/2013 PIC18F46J11 Datasheet Errata Revision 08/Nov/2013 | |
| PCN Assembly/Origin | Qualification Assembly Site 01/May/2014 Qualification Report 01/Jul/2014 | |
| PCN Packaging | Reel Design Update 07/May/2015 Label and Packing Changes 23/Sep/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Microchip Technology | |
| Series | PIC® XLP™ 18J | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Core Processor | PIC | |
| Core Size | 8-Bit | |
| Speed | 48MHz | |
| Connectivity | I²C, SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
| Number of I/O | 34 | |
| Program Memory Size | 32KB (16K x 16) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 3.8K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 2 V ~ 3.6 V | |
| Data Converters | A/D 13x10b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

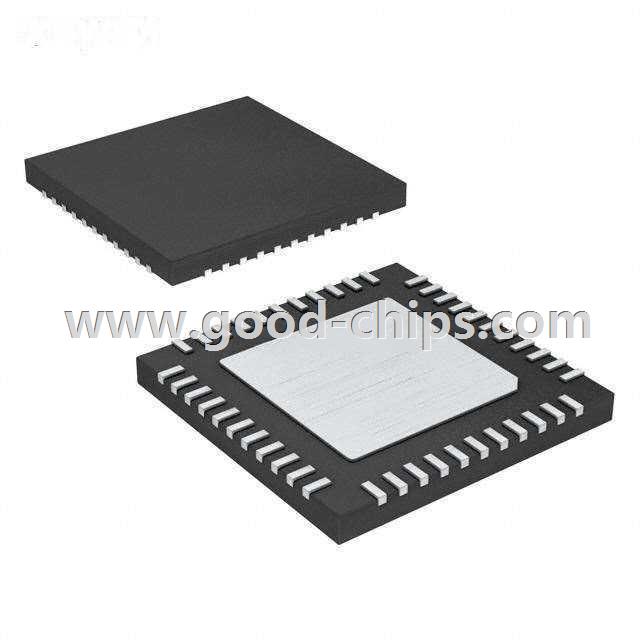

| Package / Case | 44-VQFN Exposed Pad | |
| Supplier Device Package | 44-QFN (8x8) | |
| Standard Package | 1,600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PIC18LF45J11T-I/ML | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PIC18LF45J11T-I/ML is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of PIC18LF45J11T-I/ML is new and unused, you can buy PIC18LF45J11T-I/ML Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PIC18LF45J11T-I/ML.
