Manufacturer Part Number: | PIC16F1778-I/MX |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Embedded - Microcontrollers |
Available Quantity: | 10093 Pieces |
Unit Price: | Quote by Email |
Description: | PIC PIC® XLP™ 16F Microcontroller IC 8-Bit 32MHz 28KB (16K x 14) FLASH 28-UQFN (6x6) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PIC16F1778-I/MX Datasheet |
Internal Part Number | 898-PIC16F1778-I/MX | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Programmable Ramp Generator Tech Brief | |
Online Catalog | PIC® XLP16F/LF | |
Category | Integrated Circuits (ICs) | |
Family | Embedded - Microcontrollers | |
Manufacturer | Microchip Technology | |
Series | PIC® XLP™ 16F | |
Packaging | Tube | |
Part Status | Active | |
Core Processor | PIC | |
Core Size | 8-Bit | |
Speed | 32MHz | |
Connectivity | I²C, LIN, SPI, UART/USART | |
Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
Number of I/O | 25 | |
Program Memory Size | 28KB (16K x 14) | |
Program Memory Type | FLASH | |
EEPROM Size | 128 x 8 | |
RAM Size | 2K x 8 | |
Voltage - Supply (Vcc/Vdd) | 2.3 V ~ 5.5 V | |
Data Converters | A/D 17x10b, D/A 3x5b, 3x10b | |
Oscillator Type | Internal | |
Operating Temperature | -40°C ~ 85°C (TA) | |

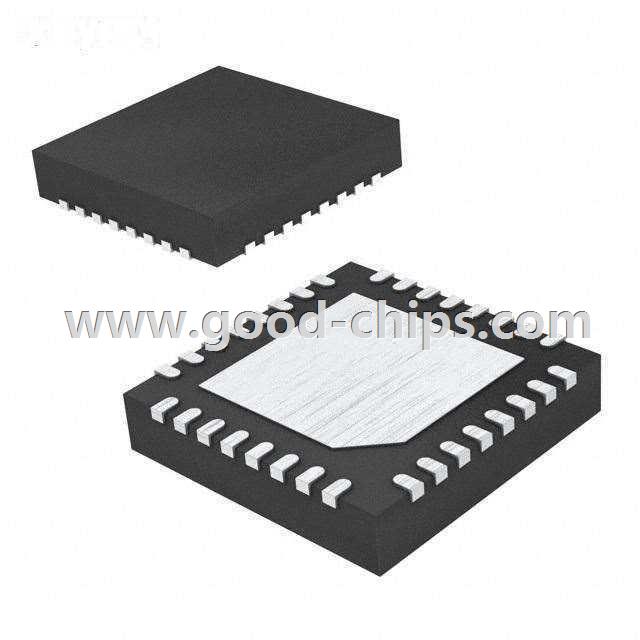

Package / Case | 28-UQFN Exposed Pad | |
Supplier Device Package | 28-UQFN (6x6) | |
Standard Package | 61 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PIC16F1778-I/MX | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PIC16F1778-I/MX is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of PIC16F1778-I/MX is new and unused, you can buy PIC16F1778-I/MX Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PIC16F1778-I/MX.
