| Manufacturer Part Number: | PIC16C74B/JW |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | PIC PIC® 16C Microcontroller IC 8-Bit 20MHz 7KB (4K x 14) EPROM, UV 40-Cerdip |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PIC16C74B/JW Datasheet |
| Internal Part Number | 898-PIC16C74B/JW | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Microchip Technology | |
| Series | PIC® 16C | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| Core Processor | PIC | |
| Core Size | 8-Bit | |
| Speed | 20MHz | |
| Connectivity | I²C, SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, POR, PWM, WDT | |
| Number of I/O | 33 | |
| Program Memory Size | 7KB (4K x 14) | |
| Program Memory Type | EPROM, UV | |
| EEPROM Size | - | |
| RAM Size | 192 x 8 | |
| Voltage - Supply (Vcc/Vdd) | 4 V ~ 5.5 V | |
| Data Converters | A/D 8x8b | |
| Oscillator Type | External | |
| Operating Temperature | 0°C ~ 70°C (TA) | |

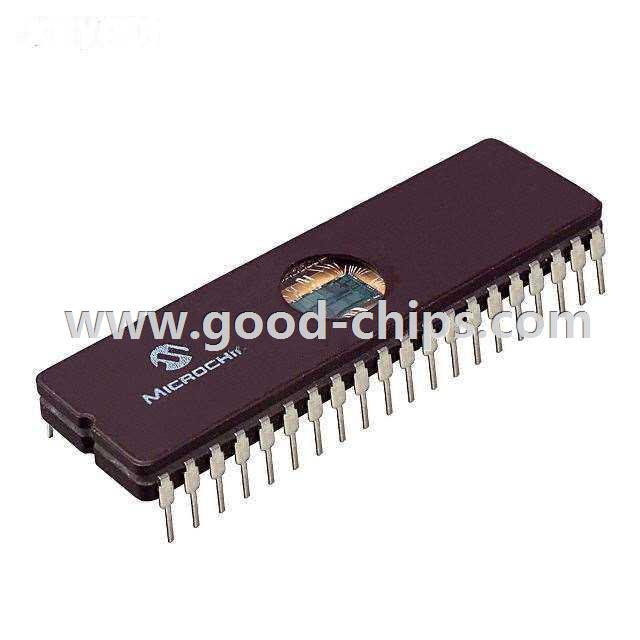

| Package / Case | 40-CDIP (0.600", 15.24mm) Window | |
| Supplier Device Package | 40-Cerdip | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PIC16C74B/JW | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PIC16C74B/JW is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of PIC16C74B/JW is new and unused, you can buy PIC16C74B/JW Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PIC16C74B/JW.
