| Manufacturer Part Number: | PI74HSTL1212AEX |
|---|---|
| Manufacturer: | Pericom |
| Product Category: | Logic - Translators, Level Shifters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Voltage Level Translator Bidirectional 2 Circuit 12 Channel 64-TSSOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PI74HSTL1212AEX Datasheet |
| Internal Part Number | 898-PI74HSTL1212AEX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 13/Dec/2013 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Translators, Level Shifters | |
| Manufacturer | Pericom | |
| Series | 74HSTL | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Translator Type | Voltage Level | |
| Channel Type | Bidirectional | |
| Number of Circuits | 2 | |
| Channels per Circuit | 12 | |
| Voltage - VCCA | 1.7 V ~ 1.9 V | |
| Voltage - VCCB | 3 V ~ 3.6 V | |
| Input Signal | - | |
| Output Signal | - | |
| Output Type | Non-Inverted | |
| Data Rate | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Features | - | |
| Mounting Type | Surface Mount | |

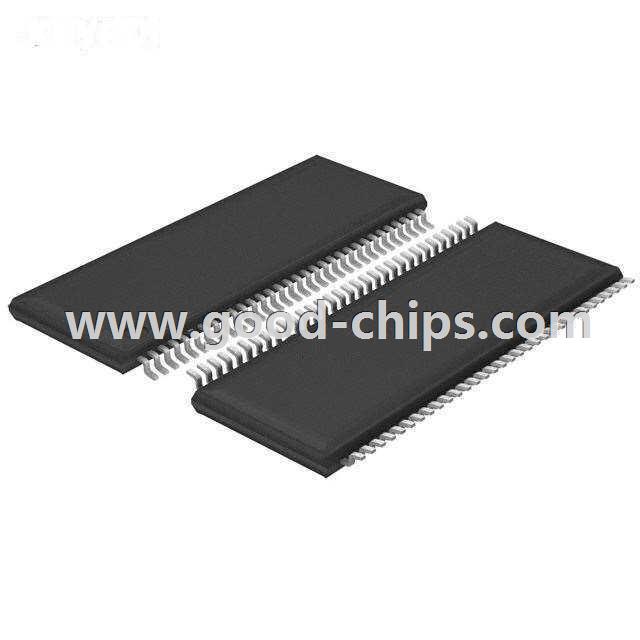

| Package / Case | 64-TFSOP (0.240", 6.10mm Width) | |
| Supplier Device Package | 64-TSSOP | |
| Standard Package | 1,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PI74HSTL1212AEX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PI74HSTL1212AEX is in stock for immediate shipping now. We are the distributor of Pericom all series components. The condition of PI74HSTL1212AEX is new and unused, you can buy PI74HSTL1212AEX Pericom with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PI74HSTL1212AEX.
