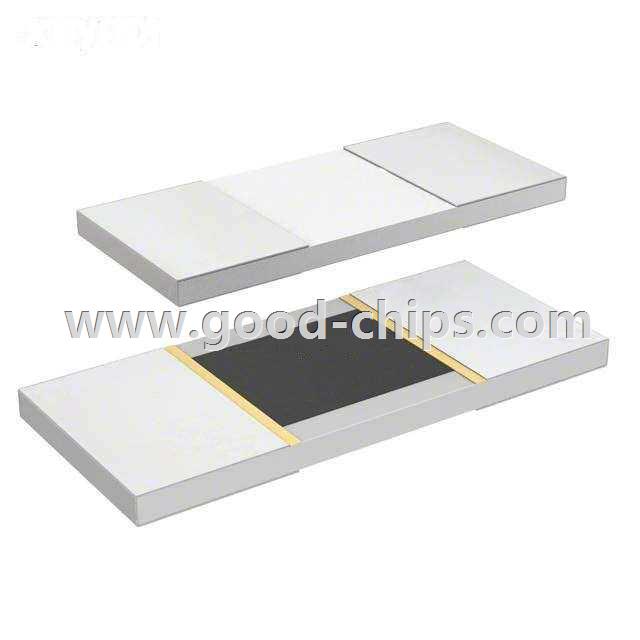

| Manufacturer Part Number: | PHP02512E20R0BST5 |
|---|---|
| Manufacturer: | Vishay Thin Film |
| Product Category: | Chip Resistor - Surface Mount |
| Available Quantity: | 10040 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES SMD 20 OHM 0.1% 2.5W 2512 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PHP02512E20R0BST5 Datasheet |
| Internal Part Number | 898-PHP02512E20R0BST5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Thin Film PHP Chip Resistors | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PHP Series | |
| Category | Resistors | |
| Family | Chip Resistor - Surface Mount | |
| Manufacturer | Vishay Thin Film | |
| Series | PHP | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Resistance (Ohms) | 20 | |
| Tolerance | ±0.1% | |
| Power (Watts) | 2.5W | |
| Composition | Thin Film | |
| Features | Flame Proof, Moisture Resistant, Safety | |
| Temperature Coefficient | ±25ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |
| Package / Case | 2512 (6432 Metric) | |
| Supplier Device Package | 2512 | |
| Size / Dimension | 0.259" L x 0.124" W (6.58mm x 3.15mm) | |
| Height | 0.033" (0.84mm) | |
| Number of Terminations | 2 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PHP02512E20R0BST5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PHP02512E20R0BST5 is in stock for immediate shipping now. We are the distributor of Vishay Thin Film all series components. The condition of PHP02512E20R0BST5 is new and unused, you can buy PHP02512E20R0BST5 Vishay Thin Film with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PHP02512E20R0BST5.
