| Manufacturer Part Number: | PHG.1B.306.CLLD52Z |
|---|---|
| Manufacturer: | LEMO |
| Product Category: | Circular Connectors |
| Available Quantity: | 9032 Pieces |
| Unit Price: | Quote by Email |

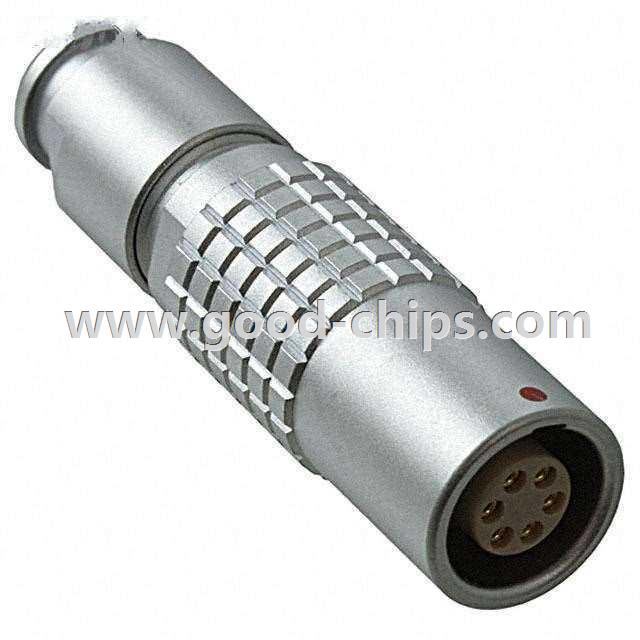

| Description: | 6 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PHG.1B.306.CLLD52Z Datasheet |
| Internal Part Number | 898-PHG.1B.306.CLLD52Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | B Series Multi-Pin Connectors | |
| Online Catalog | B Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | LEMO | |
| Series | 1B | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 6 | |
| Shell Size - Insert | 306 | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder Cup | |
| Fastening Type | Push-Pull, Detent Lock | |
| Orientation | G | |
| Ingress Protection | IP50 - Dust Protected | |
| Shell Material, Finish | Brass, Chrome Plated | |
| Contact Finish | Gold | |
| Features | Backshell, Shielded | |
| Contact Finish Thickness | 59µin (1.50µm) | |
| Current Rating | - | |
| Voltage - Rated | - | |
| Operating Temperature | -55°C ~ 250°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PHG.1B.306.CLLD52Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PHG.1B.306.CLLD52Z is in stock for immediate shipping now. We are the distributor of LEMO all series components. The condition of PHG.1B.306.CLLD52Z is new and unused, you can buy PHG.1B.306.CLLD52Z LEMO with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PHG.1B.306.CLLD52Z.
