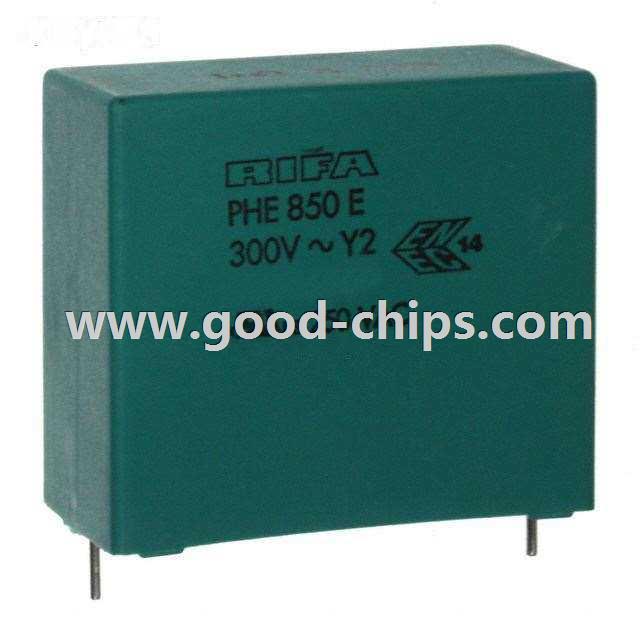

Manufacturer Part Number: | PHE850ER7100MR03R06L2 |
---|---|
Manufacturer: | Kemet |
Product Category: | Film Capacitors |
Available Quantity: | 13368 Pieces |
Unit Price: | Quote by Email |
Description: | 1µF Film Capacitor 300V 1250V (1.25kV) Polypropylene (PP), Metallized Radial 1.614" L x 0.748" W (41.00mm x 19.00mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PHE850ER7100MR03R06L2 Datasheet |
Internal Part Number | 898-PHE850ER7100MR03R06L2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Capacitor Basics- Typical Uses for Capacitors Film Capacitors for Power Supplies and Power Electronics | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | PHE850 Series | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | Kemet | |
Series | PHE850 | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 1µF | |
Tolerance | ±20% | |
Voltage Rating - AC | 300V | |
Voltage Rating - DC | 1250V (1.25kV) | |
Dielectric Material | Polypropylene (PP), Metallized | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -55°C ~ 110°C | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 1.614" L x 0.748" W (41.00mm x 19.00mm) | |
Height - Seated (Max) | 1.417" (36.00mm) | |
Termination | PC Pins | |
Lead Spacing | 1.476" (37.50mm) | |
Applications | EMI, RFI Suppression | |
Features | Y2 Safety Rated | |
Standard Package | 91 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PHE850ER7100MR03R06L2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PHE850ER7100MR03R06L2 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of PHE850ER7100MR03R06L2 is new and unused, you can buy PHE850ER7100MR03R06L2 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PHE850ER7100MR03R06L2.
