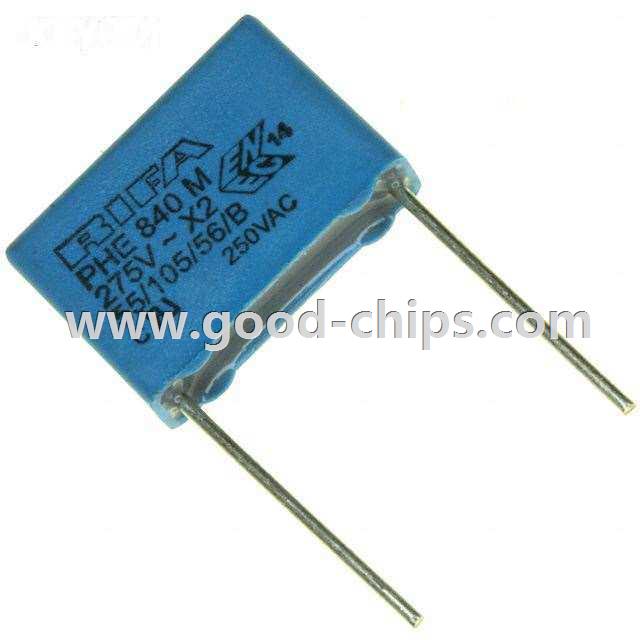

Manufacturer Part Number: | PHE840MB6100MB05R17 |
---|---|
Manufacturer: | Kemet |
Product Category: | Film Capacitors |
Available Quantity: | 20421 Pieces |
Unit Price: | Quote by Email |
Description: | 0.1µF Film Capacitor 275V 760V Polypropylene (PP), Metallized Radial 0.709" L x 0.217" W (18.00mm x 5.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PHE840MB6100MB05R17 Datasheet |
Internal Part Number | 898-PHE840MB6100MB05R17 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Capacitor Basics- Typical Uses for Capacitors Film Capacitors for Power Supplies and Power Electronics | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | PHE840M Series | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | Kemet | |
Series | PHE840M | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 0.1µF | |
Tolerance | ±20% | |
Voltage Rating - AC | 275V | |
Voltage Rating - DC | 760V | |
Dielectric Material | Polypropylene (PP), Metallized | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -55°C ~ 105°C | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.709" L x 0.217" W (18.00mm x 5.50mm) | |
Height - Seated (Max) | 0.492" (12.50mm) | |
Termination | PC Pins | |
Lead Spacing | 0.591" (15.00mm) | |
Applications | EMI, RFI Suppression | |
Features | X2 Safety Rated | |
Standard Package | 800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PHE840MB6100MB05R17 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PHE840MB6100MB05R17 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of PHE840MB6100MB05R17 is new and unused, you can buy PHE840MB6100MB05R17 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PHE840MB6100MB05R17.
