Manufacturer Part Number: | PHE450XD5220JD20R06L2 |
---|---|
Manufacturer: | Kemet |
Product Category: | Film Capacitors |
Available Quantity: | 9024 Pieces |
Unit Price: | Quote by Email |

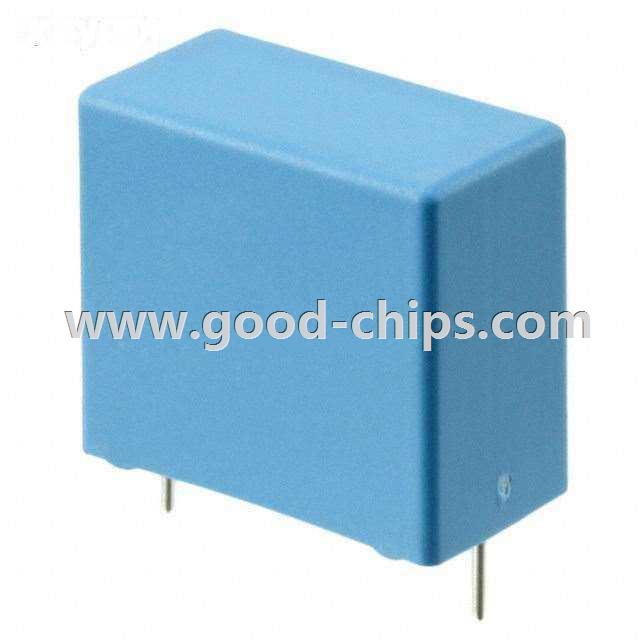

Description: | 0.022µF Film Capacitor 1000V (1kV) 3000V (3kV) Polypropylene (PP), Metallized Radial 1.024" L x 0.532" W (26.00mm x 13.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PHE450XD5220JD20R06L2 Datasheet |
Internal Part Number | 898-PHE450XD5220JD20R06L2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Capacitor Basics- Typical Uses for Capacitors | |
Online Catalog | PHE450 Series | |
Category | Capacitors | |
Family | Film Capacitors | |
Manufacturer | Kemet | |
Series | PHE450 | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 0.022µF | |
Tolerance | ±5% | |
Voltage Rating - AC | 1000V (1kV) | |
Voltage Rating - DC | 3000V (3kV) | |
Dielectric Material | Polypropylene (PP), Metallized | |
ESR (Equivalent Series Resistance) | - | |
Operating Temperature | -55°C ~ 105°C | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 1.024" L x 0.532" W (26.00mm x 13.50mm) | |
Height - Seated (Max) | 0.906" (23.00mm) | |
Termination | PC Pins | |
Lead Spacing | 0.886" (22.50mm) | |
Applications | General Purpose | |
Features | - | |
Standard Package | 209 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PHE450XD5220JD20R06L2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PHE450XD5220JD20R06L2 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of PHE450XD5220JD20R06L2 is new and unused, you can buy PHE450XD5220JD20R06L2 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PHE450XD5220JD20R06L2.
