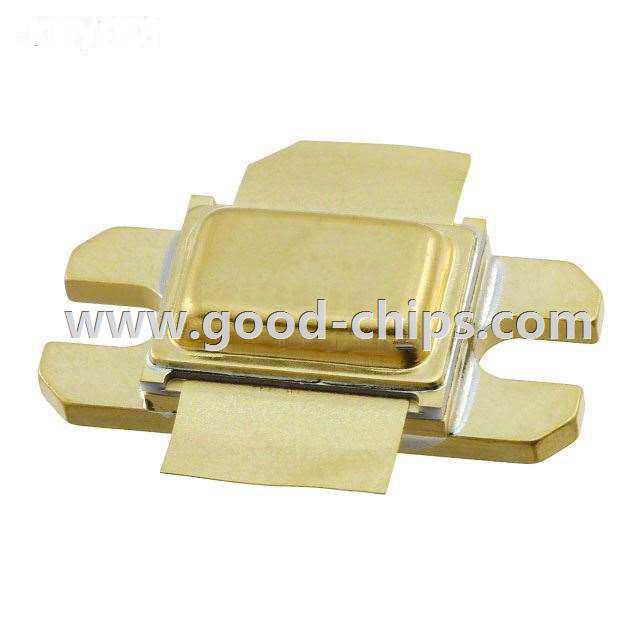

| Manufacturer Part Number: | PH1090-350L |
|---|---|
| Manufacturer: | M/A-Com Technology Solutions |
| Product Category: | Transistors - Bipolar (BJT) - RF |
| Available Quantity: | 9016 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transistor NPN 80V 17A 350W Chassis Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PH1090-350L Datasheet |
| Internal Part Number | 898-PH1090-350L | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | MEP & BeO Family of Kyocera Pkgs AG Braze to CuSil24/Sept/2015 | |
| Online Catalog | NPN RF Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - RF | |
| Manufacturer | M/A-Com Technology Solutions | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Transistor Type | NPN | |
| Voltage - Collector Emitter Breakdown (Max) | 80V | |
| Frequency - Transition | - | |
| Noise Figure (dB Typ @ f) | - | |
| Gain | 8.32dB | |
| Power - Max | 350W | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | |
| Current - Collector (Ic) (Max) | 17A | |
| Mounting Type | Chassis Mount | |
| Package / Case | - | |
| Supplier Device Package | - | |
| Standard Package | 6 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PH1090-350L | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PH1090-350L is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of PH1090-350L is new and unused, you can buy PH1090-350L M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PH1090-350L.
