| Manufacturer Part Number: | PF2472-100RF1 |
|---|---|
| Manufacturer: | Riedon |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 9349 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 100 OHM 100W 1% TO247 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PF2472-100RF1 Datasheet |
| Internal Part Number | 898-PF2472-100RF1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Resistor Heatsinks Non-Inductive Thin Film Power Resistors | |
| Featured Product | High-Power TO Style Resistors | |
| Online Catalog | PF2470 Series | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Riedon | |
| Series | PF2470 | |
| Packaging | Tray | |
| Part Status | Active | |
| Resistance (Ohms) | 100 | |
| Tolerance | ±1% | |
| Power (Watts) | 100W | |
| Composition | Thin Film | |
| Features | - | |
| Temperature Coefficient | ±50ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |

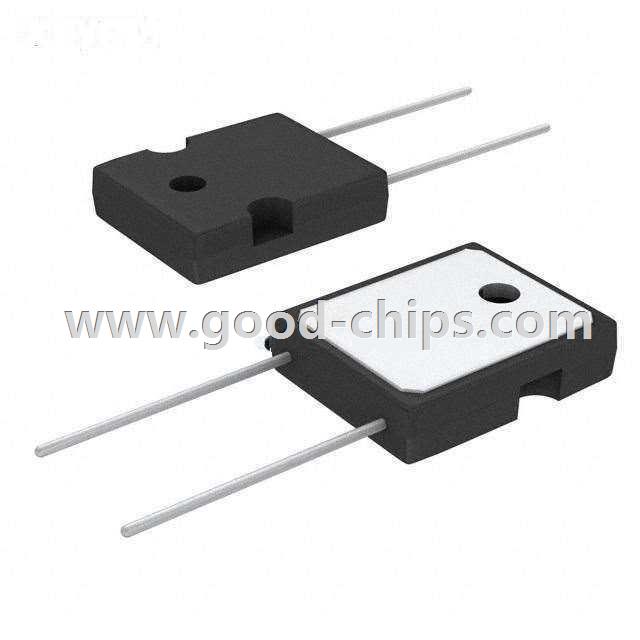

| Package / Case | TO-247-2 | |
| Supplier Device Package | TO-247 | |
| Size / Dimension | 0.630" L x 0.189" W (16.00mm x 4.80mm) | |
| Height | 0.787" (20.00mm) | |
| Number of Terminations | 2 | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PF2472-100RF1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PF2472-100RF1 is in stock for immediate shipping now. We are the distributor of Riedon all series components. The condition of PF2472-100RF1 is new and unused, you can buy PF2472-100RF1 Riedon with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PF2472-100RF1.
