| Manufacturer Part Number: | PF1262-20RF1 |
|---|---|
| Manufacturer: | Riedon |
| Product Category: | Through Hole Resistors |
| Available Quantity: | 9701 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES 20 OHM 20W 1% TO126 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PF1262-20RF1 Datasheet |
| Internal Part Number | 898-PF1262-20RF1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Resistor Heatsinks Non-Inductive Thin Film Power Resistors | |
| Featured Product | High-Power TO Style Resistors | |
| Online Catalog | PF1260 Series | |
| Category | Resistors | |
| Family | Through Hole Resistors | |
| Manufacturer | Riedon | |
| Series | PF1260 | |
| Packaging | Tube | |
| Part Status | Active | |
| Resistance (Ohms) | 20 | |
| Tolerance | ±1% | |
| Power (Watts) | 20W | |
| Composition | Thin Film | |
| Features | - | |
| Temperature Coefficient | ±50ppm/°C | |
| Operating Temperature | -55°C ~ 155°C | |

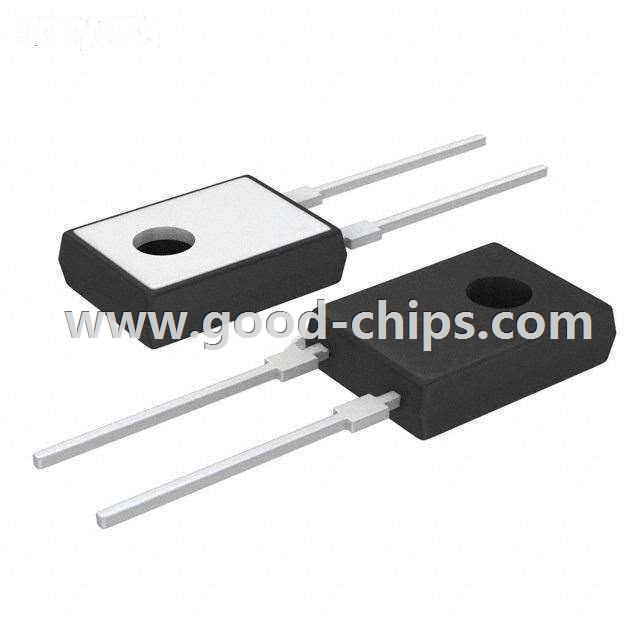

| Package / Case | TO-126-2 | |
| Supplier Device Package | TO-126 | |
| Size / Dimension | 0.335" L x 0.122" W (8.50mm x 3.10mm) | |
| Height | 0.472" (12.00mm) | |
| Number of Terminations | 2 | |
| Standard Package | 60 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PF1262-20RF1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PF1262-20RF1 is in stock for immediate shipping now. We are the distributor of Riedon all series components. The condition of PF1262-20RF1 is new and unused, you can buy PF1262-20RF1 Riedon with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PF1262-20RF1.
