| Manufacturer Part Number: | PESD3V3S2UQ,115 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | TVS - Diodes |
| Available Quantity: | 21010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 3.3VWM 20VC SOT663 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PESD3V3S2UQ,115 Datasheet |
| Internal Part Number | 898-PESD3V3S2UQ,115 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | ESD Standards and Products | |
| PCN Design/Specification | Resin Hardener 02/Jul/2013 | |
| PCN Packaging | Lighter Reels 02/Jan/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | PESDx Series | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 2 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) | |
| Voltage - Breakdown (Min) | 5.2V | |
| Voltage - Clamping (Max) @ Ipp | 20V | |
| Current - Peak Pulse (10/1000µs) | 15A (8/20µs) | |
| Power - Peak Pulse | 150W | |
| Power Line Protection | No | |
| Applications | General Purpose | |
| Capacitance @ Frequency | 200pF @ 1MHz | |
| Operating Temperature | -65°C ~ 150°C (TA) | |
| Mounting Type | Surface Mount | |

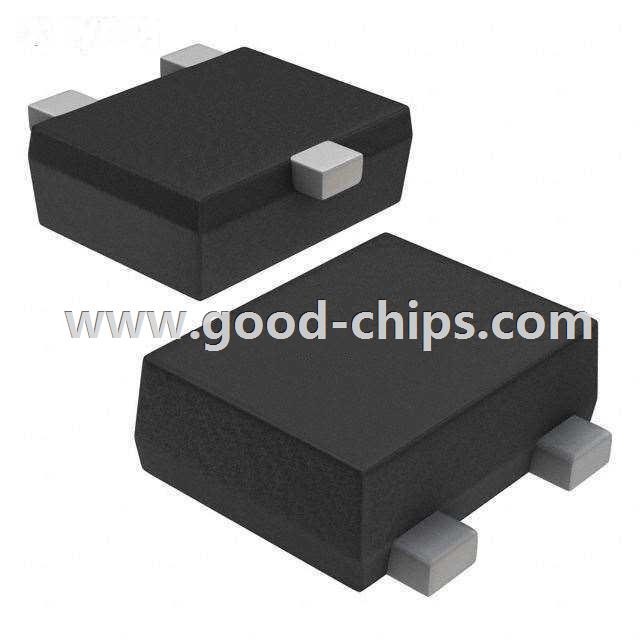

| Package / Case | SOT-663 | |
| Supplier Device Package | SOT-663 | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PESD3V3S2UQ,115 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PESD3V3S2UQ,115 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PESD3V3S2UQ,115 is new and unused, you can buy PESD3V3S2UQ,115 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PESD3V3S2UQ,115.
