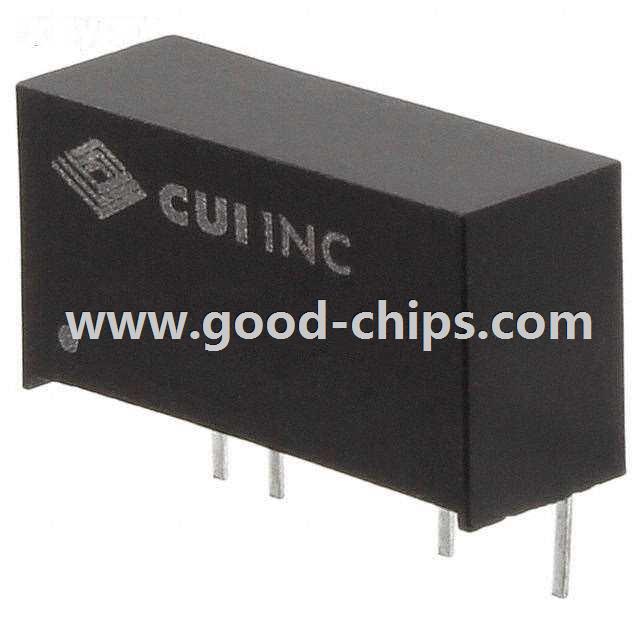

PEM2-S5-S5-S

PEM2-S5-S5-S
Manufacturer Part Number:PEM2-S5-S5-S
Manufacturer:
Product Category:DC DC Converters
Available Quantity:9429 Pieces
Unit Price:Quote by Email
Description:CONVERT DC/DC 2W 5V 400MA OUT
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PEM2-S5-S5-S Datasheet
PEM2-S5-S5-S´s Parameters
Internal Part Number898-PEM2-S5-S5-S
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Product Training ModulesLow Power DC-DC Converters
EMI Regulations and Mitigation Considerations for Switching Power Supplies
Reliability Considerations for Power Supplies
Power Supply Safety Standards, Agencies and Marks
Thermal Management of Power Supplies
RoHS InformationPEM2-S Series Cert of Compliance
Featured ProductCUI - High Isolation 1 W - 2 W SIP DC-DC Converters
3D ModelPEM2-S5-S5-S
Online Catalog PEM2-S Series
CategoryPower Supplies - Board Mount
FamilyDC DC Converters
ManufacturerCUI Inc.
SeriesPEM2-S
PackagingTube
Part StatusActive
TypeIsolated Module
Number of Outputs1
Voltage - Input (Min)4.5V
Voltage - Input (Max)5.5V
Voltage - Output 15V
Voltage - Output 2-
Voltage - Output 3-
Current - Output (Max)400mA
Power (Watts) - Manufacture Series2W
Voltage - Isolation3kV (3000V)
ApplicationsITE (Commercial)
FeaturesSCP
Mounting TypeThrough Hole
Package / Case7-SIP Module (4 Leads)
Size / Dimension0.77" L x 0.28" W x 0.39" H (19.6mm x 7.0mm x 10.0mm)
Operating Temperature-40°C ~ 105°C
Efficiency89%
Power (Watts) - Max2W
Standard Package 25
Weight0.001 KG
ApplicationEmail for details
Replacement PartPEM2-S5-S5-S
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PEM2-S5-S5-S is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PEM2-S5-S5-S is new and unused, you can buy PEM2-S5-S5-S CUI Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PEM2-S5-S5-S.
