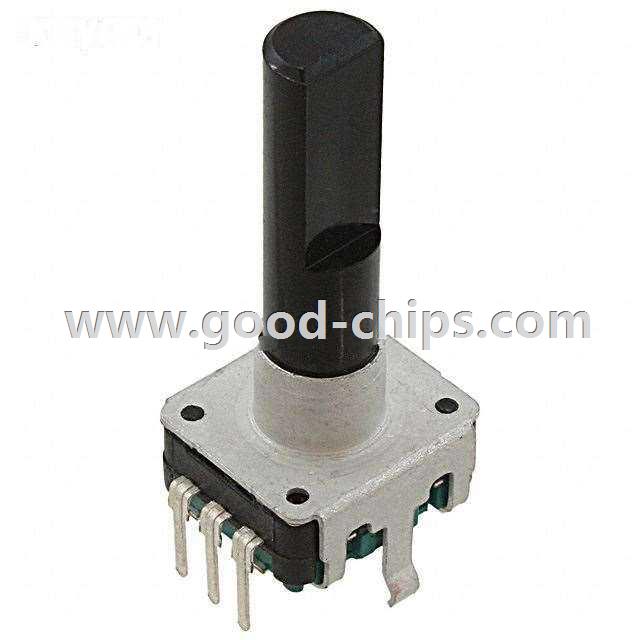

| Manufacturer Part Number: | PEC12-4230F-S0024 |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Encoders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODER ROTARY 12MM VERT 24PPR |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PEC12-4230F-S0024 Datasheet |
| Internal Part Number | 898-PEC12-4230F-S0024 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | PEC12 Material Declaration | |
| PCN Obsolescence/ EOL | Models PEC11/PEC12 Feb/2013 | |
| PCN Design/Specification | PEC12 Series Mold May/2010 | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Bourns Inc. | |
| Series | PEC12 | |
| Part Status | Obsolete | |
| Encoder Type | Mechanical | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 24 | |
| Voltage - Supply | - | |
| Actuator Type | 6mm Dia Flatted End | |
| Detent | Yes | |
| Built in Switch | Yes | |
| Mounting Type | PCB, Through Hole | |
| Orientation | Vertical | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 30K | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PEC12-4230F-S0024 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PEC12-4230F-S0024 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of PEC12-4230F-S0024 is new and unused, you can buy PEC12-4230F-S0024 Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PEC12-4230F-S0024.
