PEC03DBCN

PEC03DBCN
Manufacturer Part Number:PEC03DBCN
Manufacturer:
Product Category:Rectangular Connectors - Headers, Male Pins
Available Quantity:9010 Pieces
Unit Price:Quote by Email

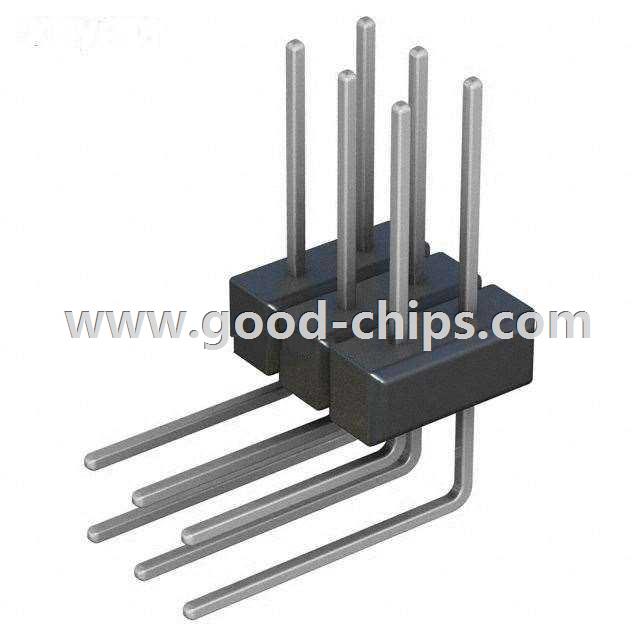

Description:6 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: PEC03DBCN Datasheet
PEC03DBCN´s Parameters
Internal Part Number898-PEC03DBCN
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Online Catalog GxC and PxC
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Headers, Male Pins
ManufacturerSullins Connector Solutions
Series-
PackagingBulk
Part StatusActive
Contact TypeMale Pin
Connector TypeHeader, Unshrouded, Breakaway
Number of Positions6
Number of Positions LoadedAll
Pitch0.100" (2.54mm)
Number of Rows2
Row Spacing0.100" (2.54mm)
Contact Mating Length0.230" (5.84mm)
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Fastening Type-
Features-
Contact FinishTin
Contact Finish Thickness100µin (2.54µm)
ColorBlack
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement PartPEC03DBCN
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

PEC03DBCN is in stock for immediate shipping now. We are the distributor of Sullins Connector Solutions all series components. The condition of PEC03DBCN is new and unused, you can buy PEC03DBCN Sullins Connector Solutions with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for PEC03DBCN.
