| Manufacturer Part Number: | PE820203 |
|---|---|
| Manufacturer: | Curtis Industries |
| Product Category: | Power Entry Connectors - Inlets, Outlets, Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

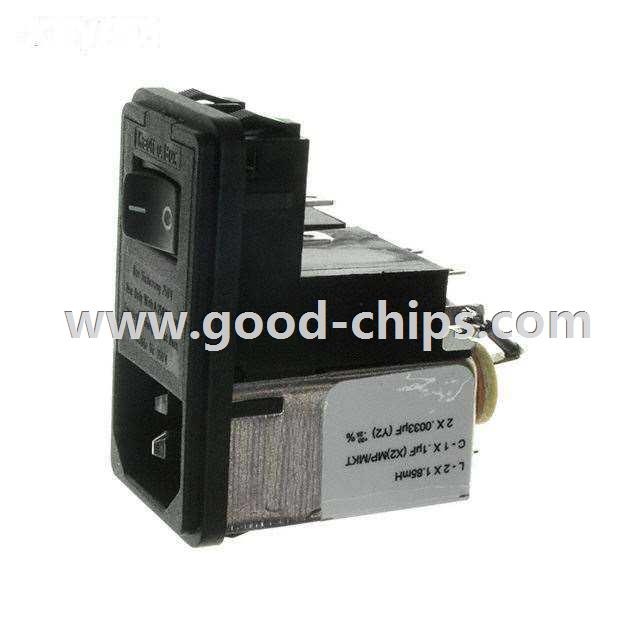

| Description: | Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PE820203 Datasheet |
| Internal Part Number | 898-PE820203 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMI/RFI Basics EMI/RFI Regulations EMI-RFI Testing | |
| Category | Connectors, Interconnects | |
| Family | Power Entry Connectors - Inlets, Outlets, Modules | |
| Manufacturer | Curtis Industries | |
| Series | PE8 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Style | IEC 320-C14 | |
| Connector Type | Receptacle, Male Blades - Module | |
| Current - IEC | 3A | |
| Voltage - IEC | 250VAC | |
| Current - UL | - | |
| Voltage - UL | - | |
| Filter Type | Filtered (EMI, RFI) - Commercial | |
| Fuse | Yes | |
| Number of Positions | 3 | |
| Mounting Type | Panel Mount, Snap-In | |
| Termination | Quick Connect - 0.110" (2.8mm) | |
| Switch Features | Switch On-Off | |
| Features | - | |
| Fuse Holder, Drawer | Fuse Holder, Twin Fused | |
| Panel Cutout Dimensions | Variable Size | |
| Panel Thickness | 0.031" ~ 0.125" (0.79mm ~ 3.18mm) | |
| Material Flammability Rating | - | |
| Ingress Protection | - | |
| Approvals | CE, CSA, TUV, UL | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PE820203 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PE820203 is in stock for immediate shipping now. We are the distributor of Curtis Industries all series components. The condition of PE820203 is new and unused, you can buy PE820203 Curtis Industries with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PE820203.
