| Manufacturer Part Number: | PE42851MLBA-X |
|---|---|
| Manufacturer: | Peregrine Semiconductor |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC General Purpose SP5T 1GHz 50 Ohm 32-QFN (5x5) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PE42851MLBA-X Datasheet |
| Internal Part Number | 898-PE42851MLBA-X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Peregrine Semiconductor | |
| Series | UltraCMOS®, HaRP™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | 100MHz | |
| Frequency - Upper | 1GHz | |
| Isolation @ Frequency | 36dB @ 1GHz (typ) | |
| Insertion Loss @ Frequency | 0.8dB @ 1GHz | |
| IIP3 | 42dBm (typ) | |
| Topology | Reflective | |
| Circuit | SP5T | |
| P1dB | - | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 2.3 V ~ 5.5 V | |
| RF Type | General Purpose | |

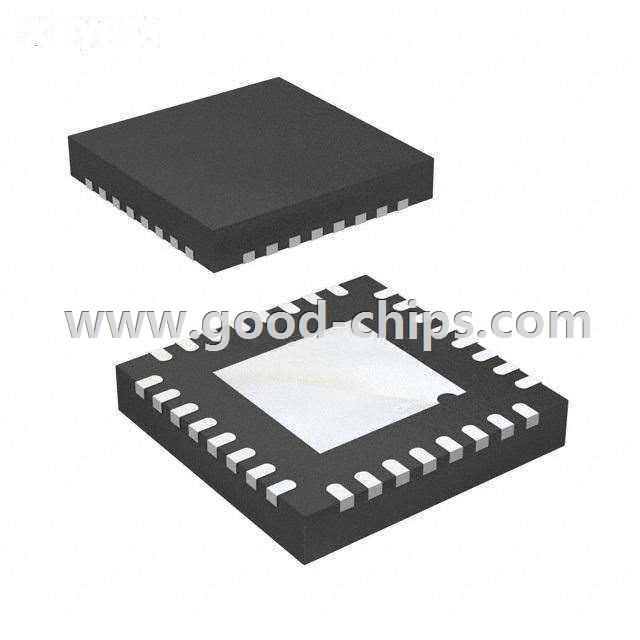

| Package / Case | 32-VFQFN Exposed Pad | |
| Supplier Device Package | 32-QFN (5x5) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PE42851MLBA-X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PE42851MLBA-X is in stock for immediate shipping now. We are the distributor of Peregrine Semiconductor all series components. The condition of PE42851MLBA-X is new and unused, you can buy PE42851MLBA-X Peregrine Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PE42851MLBA-X.
