| Manufacturer Part Number: | PE42522A-X |
|---|---|
| Manufacturer: | Peregrine Semiconductor |
| Product Category: | RF Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Switch IC SPDT 26.5GHz 50 Ohm 29-LGA (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PE42522A-X Datasheet |
| Internal Part Number | 898-PE42522A-X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | PE42522 | |
| Category | RF/IF and RFID | |
| Family | RF Switches | |
| Manufacturer | Peregrine Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Frequency - Lower | 9kHz | |
| Frequency - Upper | 26.5GHz | |
| Isolation @ Frequency | 22dB @ 2.5GHz (typ) | |
| Insertion Loss @ Frequency | - | |
| IIP3 | 59dBm | |
| Topology | - | |
| Circuit | SPDT | |
| P1dB | - | |
| Features | - | |
| Impedance | 50 Ohm | |
| Operating Temperature | -40°C ~ 85°C | |
| Voltage - Supply | 2.3 V ~ 5.5 V | |
| RF Type | - | |

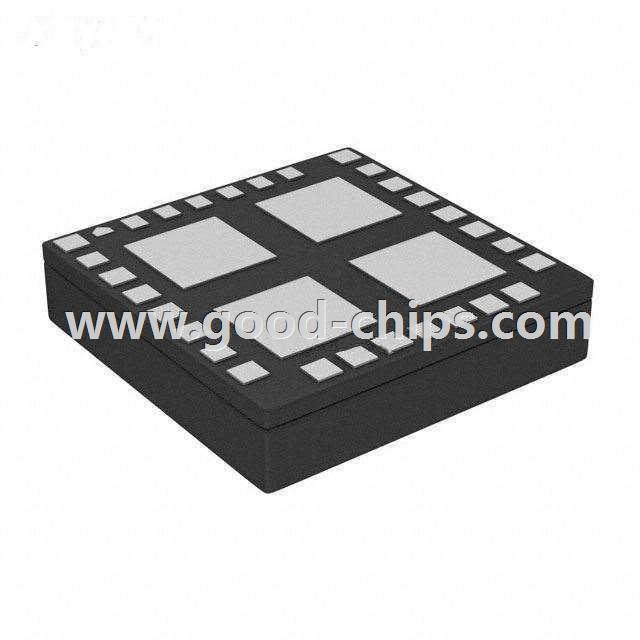

| Package / Case | 29-TFLGA Exposed Pad | |
| Supplier Device Package | 29-LGA (4x4) | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PE42522A-X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PE42522A-X is in stock for immediate shipping now. We are the distributor of Peregrine Semiconductor all series components. The condition of PE42522A-X is new and unused, you can buy PE42522A-X Peregrine Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PE42522A-X.
