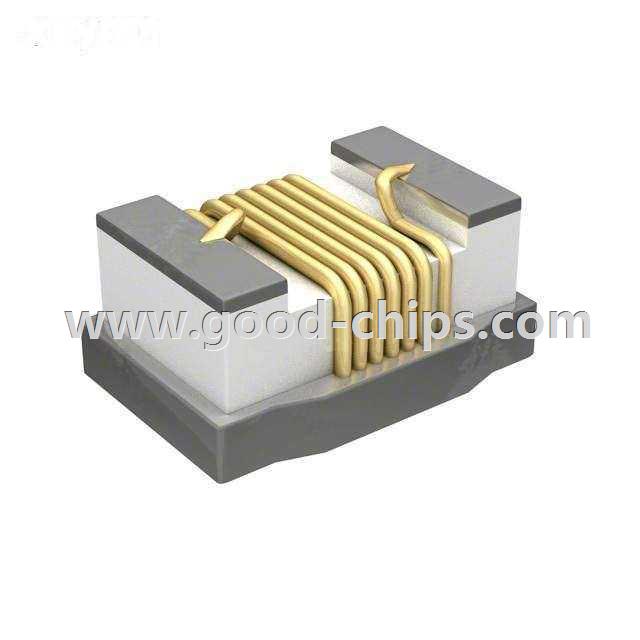

.jpg)
| Manufacturer Part Number: | PE-1008CD181GTT |
|---|---|
| Manufacturer: | Pulse Electronics Corporation |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 180nH Unshielded Wirewound Inductor 620mA 770 mOhm Max 1008 (2520 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PE-1008CD181GTT Datasheet |
| Internal Part Number | 898-PE-1008CD181GTT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Packaging | 0805,1008 Chip Inductor Series 22/Mar/2015 | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Pulse Electronics Corporation | |
| Series | 1008CD | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ceramic | |
| Inductance | 180nH | |
| Tolerance | ±2% | |
| Current Rating | 620mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 770 mOhm Max | |
| Q @ Freq | 45 @ 100MHz | |
| Frequency - Self Resonant | 650MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 25MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 1008 (2520 Metric) | |
| Size / Dimension | 0.115" L x 0.110" W (2.92mm x 2.79mm) | |
| Height - Seated (Max) | 0.090" (2.29mm) | |
| Standard Package | 1,600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PE-1008CD181GTT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PE-1008CD181GTT is in stock for immediate shipping now. We are the distributor of Pulse Electronics Corporation all series components. The condition of PE-1008CD181GTT is new and unused, you can buy PE-1008CD181GTT Pulse Electronics Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PE-1008CD181GTT.
