| Manufacturer Part Number: | PE-01005FB121STA |
|---|---|
| Manufacturer: | Pulse Electronics Corporation |
| Product Category: | Ferrite Beads and Chips |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 120 Ohm Impedance Ferrite Bead 01005 (0402 Metric) Surface Mount Signal Line 220mA 1 Lines 600 mOhm DCR -40°C ~ 105°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PE-01005FB121STA Datasheet |
| Internal Part Number | 898-PE-01005FB121STA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Ferrite Multi-Layer Beads for EMI Suppression | |
| Category | Filters | |
| Family | Ferrite Beads and Chips | |
| Manufacturer | Pulse Electronics Corporation | |
| Series | FB | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 1 | |
| Impedance @ Frequency | 120 Ohm @ 100MHz | |
| Current Rating (Max) | 220mA | |
| DC Resistance (DCR) (Max) | 600 mOhm | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 105°C | |

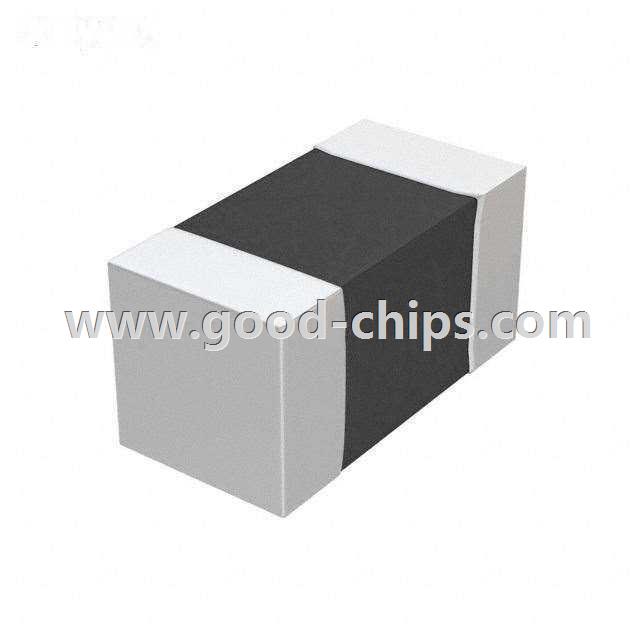

| Package / Case | 01005 (0402 Metric) | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.009" (0.22mm) | |
| Size / Dimension | 0.016" L x 0.008" W (0.40mm x 0.20mm) | |
| Standard Package | 20,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PE-01005FB121STA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PE-01005FB121STA is in stock for immediate shipping now. We are the distributor of Pulse Electronics Corporation all series components. The condition of PE-01005FB121STA is new and unused, you can buy PE-01005FB121STA Pulse Electronics Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PE-01005FB121STA.
