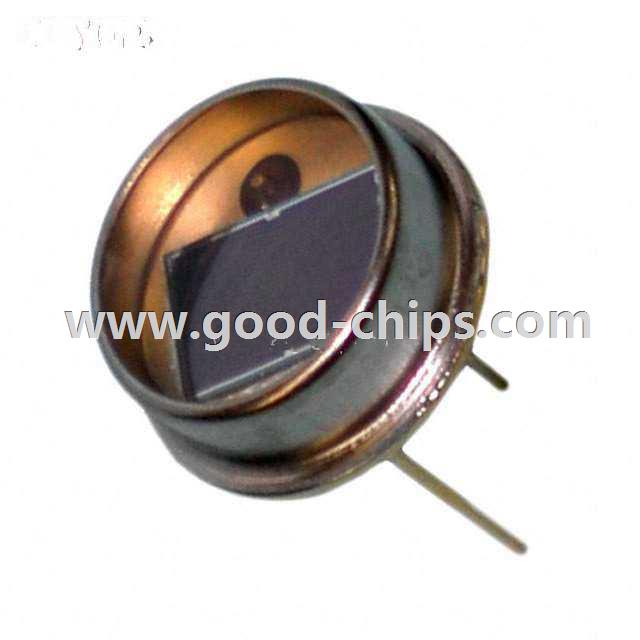

| Manufacturer Part Number: | PDB-C109 |
|---|---|
| Manufacturer: | Luna Optoelectronics |
| Product Category: | Optical Sensors - Photodiodes |
| Available Quantity: | 9044 Pieces |
| Unit Price: | Quote by Email |
| Description: | Photodiode 950nm 13ns 79° TO-233AA, TO-8-3 Lens Top Metal Can |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PDB-C109 Datasheet |
| Internal Part Number | 898-PDB-C109 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Single-Element Silicon Pin Photodiodes | |
| Online Catalog | Single-Element Silicon PIN Photodiodes | |
| Category | Sensors, Transducers | |
| Family | Optical Sensors - Photodiodes | |
| Manufacturer | Luna Optoelectronics | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Wavelength | 950nm | |
| Color - Enhanced | Blue | |
| Spectral Range | 350nm ~ 1100nm | |
| Diode Type | PIN | |
| Responsivity @ nm | 0.17 A/W @ 450nm | |
| Response Time | 13ns | |
| Voltage - DC Reverse (Vr) (Max) | 75V | |
| Current - Dark (Typ) | 5nA | |
| Active Area | 43mm² | |
| Viewing Angle | 79° | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Through Hole | |
| Package / Case | TO-233AA, TO-8-3 Lens Top Metal Can | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PDB-C109 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PDB-C109 is in stock for immediate shipping now. We are the distributor of Luna Optoelectronics all series components. The condition of PDB-C109 is new and unused, you can buy PDB-C109 Luna Optoelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PDB-C109.
