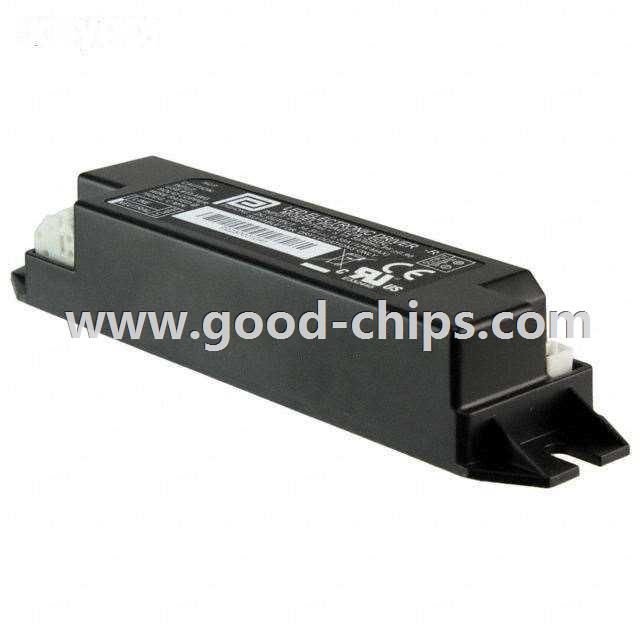

| Manufacturer Part Number: | PDA012B-350C-H-R |
|---|---|
| Manufacturer: | Phihong USA |
| Product Category: | LED Drivers |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | 350mA 20 ~ 34.4 V Constant Current LED Driver AC DC Converter Topology 1 Output |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PDA012B-350C-H-R Datasheet |
| Internal Part Number | 898-PDA012B-350C-H-R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Online Catalog | PDA12x Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | LED Drivers | |
| Manufacturer | Phihong USA | |
| Series | PDA | |
| Part Status | Active | |
| Type | Constant Current | |
| Topology | AC DC Converter | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 100VAC | |
| Voltage - Input (Max) | 136VAC | |
| Voltage - Output | 20 ~ 34.4 V | |
| Current - Output (Max) | 350mA | |
| Power (Watts) | 12W | |
| Voltage - Isolation | 3kV (3000V) | |
| Dimming | - | |
| Features | OCP, OTP, OVP, SCP | |
| Ratings | IP20 | |
| Operating Temperature | -40°C ~ 50°C | |
| Efficiency | 77% | |
| Termination Style | Connector | |
| Size / Dimension | 5.20" L x 1.20" W x 0.90" H (132.0mm x 30.0mm x 22.0mm) | |
| Mounting Type | Chassis Mount | |
| Approvals | CE, cULus | |
| Weight | 0.001 KG | |
| Standard Package | 1 | |
| Application | Email for details | |
| Replacement Part | PDA012B-350C-H-R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PDA012B-350C-H-R is in stock for immediate shipping now. We are the distributor of Phihong USA all series components. The condition of PDA012B-350C-H-R is new and unused, you can buy PDA012B-350C-H-R Phihong USA with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PDA012B-350C-H-R.
