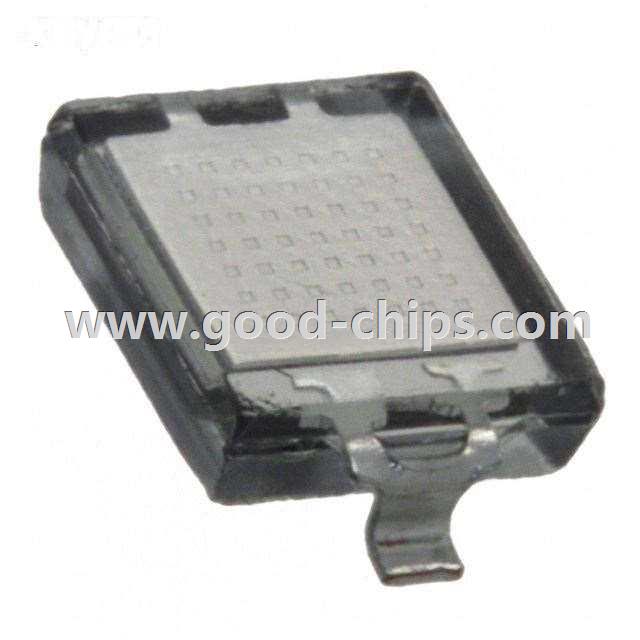

| Manufacturer Part Number: | PD70-01C/TR10 |
|---|---|
| Manufacturer: | Everlight Electronics Co Ltd |
| Product Category: | Optical Sensors - Photodiodes |
| Available Quantity: | 9179 Pieces |
| Unit Price: | Quote by Email |
| Description: | Photodiode 940nm 50ns 2-SMD, Z-Bend |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PD70-01C/TR10 Datasheet |
| Internal Part Number | 898-PD70-01C/TR10 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PD70-01B and PD70-01C | |
| Category | Sensors, Transducers | |
| Family | Optical Sensors - Photodiodes | |
| Manufacturer | Everlight Electronics Co Ltd | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Wavelength | 940nm | |
| Color - Enhanced | - | |
| Spectral Range | 400nm ~ 1100nm | |
| Diode Type | PIN | |
| Responsivity @ nm | - | |
| Response Time | 50ns | |
| Voltage - DC Reverse (Vr) (Max) | 32V | |
| Current - Dark (Typ) | 5nA | |
| Active Area | - | |
| Viewing Angle | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-SMD, Z-Bend | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PD70-01C/TR10 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PD70-01C/TR10 is in stock for immediate shipping now. We are the distributor of Everlight Electronics Co Ltd all series components. The condition of PD70-01C/TR10 is new and unused, you can buy PD70-01C/TR10 Everlight Electronics Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PD70-01C/TR10.
