Manufacturer Part Number: | PD-40S |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | Circular Connectors |
Available Quantity: | 18477 Pieces |
Unit Price: | Quote by Email |

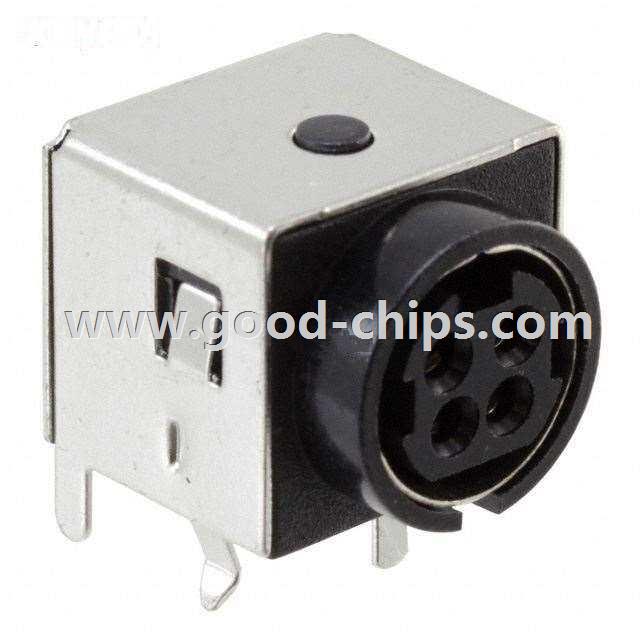

Description: | 4 Position Circular Connector Jack, Female Sockets Solder Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PD-40S Datasheet |
Internal Part Number | 898-PD-40S | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | PD-40S Cert of Compliance | |
3D Model | PD-40S | |
Online Catalog | PD | |
Category | Connectors, Interconnects | |
Family | Circular Connectors | |
Manufacturer | CUI Inc. | |
Series | PD | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Jack, Female Sockets | |
Number of Positions | 4 | |
Shell Size - Insert | DIN | |
Shell Size, MIL | - | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | Push-Pull | |
Orientation | Keyed | |
Ingress Protection | - | |
Shell Material, Finish | Steel, Tin Plated | |
Contact Finish | Tin | |
Features | Shielded | |
Contact Finish Thickness | - | |
Current Rating | 7.5A | |
Voltage - Rated | 20VDC | |
Operating Temperature | - | |
Standard Package | 680 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PD-40S | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PD-40S is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of PD-40S is new and unused, you can buy PD-40S CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PD-40S.
