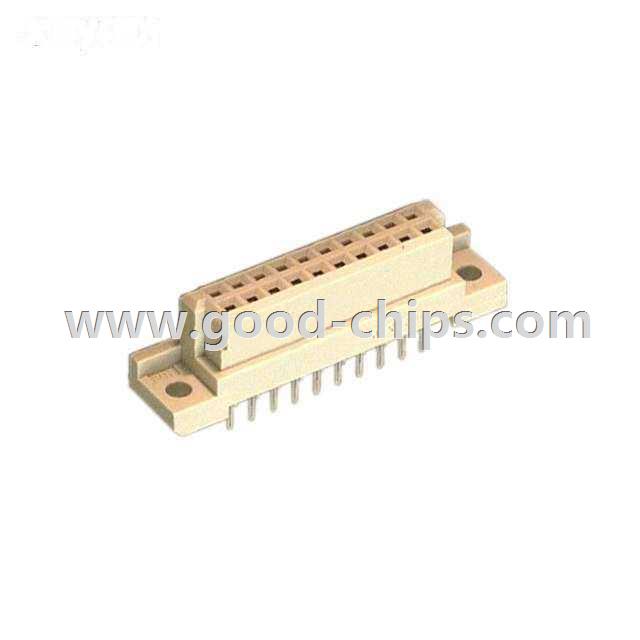

Manufacturer Part Number: | PCN13-20S-2.54DSA(71) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Backplane Connectors - DIN 41612 |
Available Quantity: | 9029 Pieces |
Unit Price: | Quote by Email |
Description: | CONN DIN RCPT 20POS DUAL STR |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PCN13-20S-2.54DSA(71) Datasheet |
Internal Part Number | 898-PCN13-20S-2.54DSA(71) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | PCN10 and PCN13 Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - DIN 41612 | |
Manufacturer | Hirose Electric Co Ltd | |
Series | PCN13 | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle, Female Sockets | |
Number of Positions | 20 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Style | B | |
Level, Class | 1 | |
Mounting Type | Through Hole | |
Termination | Solder | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | - | |
Operating Temperature | -55°C ~ 85°C | |
Current Rating | 2A | |
Material Flammability Rating | UL94 V-0 | |
Material - Insulation | Polybutylene Terephthalate (PBT) | |
Standard Package | 70 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PCN13-20S-2.54DSA(71) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PCN13-20S-2.54DSA(71) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of PCN13-20S-2.54DSA(71) is new and unused, you can buy PCN13-20S-2.54DSA(71) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCN13-20S-2.54DSA(71).
