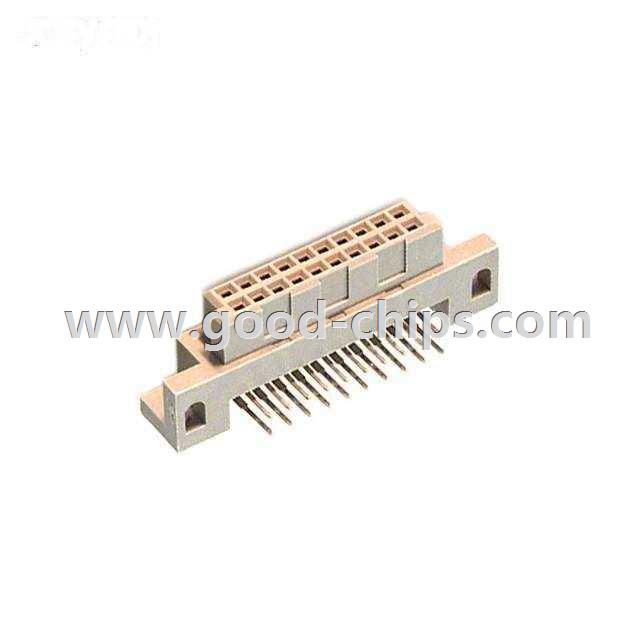

| Manufacturer Part Number: | PCN10C-20S-2.54DS |
|---|---|
| Manufacturer: | Hirose Electric Co Ltd |
| Product Category: | Backplane Connectors - DIN 41612 |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIN CONN RCPT 20 POS 2 ROW R ANG |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCN10C-20S-2.54DS Datasheet |
| Internal Part Number | 898-PCN10C-20S-2.54DS | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - DIN 41612 | |
| Manufacturer | Hirose Electric Co Ltd | |
| Series | PCN10 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 20 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Style | - | |
| Level, Class | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 8µin (0.20µm) | |
| Operating Temperature | -55°C ~ 85°C | |
| Current Rating | 2A | |
| Material Flammability Rating | UL94 V-0 | |
| Material - Insulation | Polybutylene Terephthalate (PBT) | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCN10C-20S-2.54DS | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCN10C-20S-2.54DS is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of PCN10C-20S-2.54DS is new and unused, you can buy PCN10C-20S-2.54DS Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCN10C-20S-2.54DS.
