| Manufacturer Part Number: | PCMF3DFN1X |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 6 Line Common Mode Choke Surface Mount DCR 5 Ohm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCMF3DFN1X Datasheet |
| Internal Part Number | 898-PCMF3DFN1X | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PCM Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | NXP Semiconductors | |
| Series | PCM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 6 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | - | |
| DC Resistance (DCR) (Max) | 5 Ohm (Typ) | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | ESD | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.157" L x 0.079" W (4.00mm x 2.00mm) | |
| Height (Max) | 0.020" (0.50mm) | |

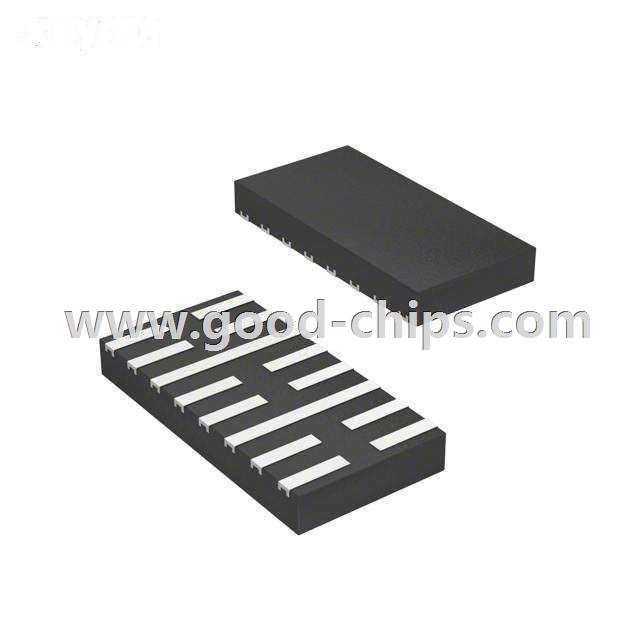

| Package / Case | 14-XFDFN | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCMF3DFN1X | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCMF3DFN1X is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PCMF3DFN1X is new and unused, you can buy PCMF3DFN1X NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCMF3DFN1X.
