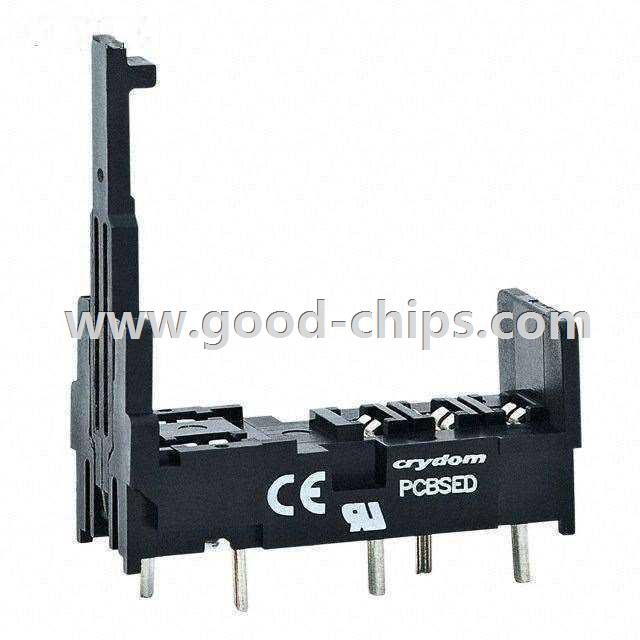

| Manufacturer Part Number: | PCBSED |
|---|---|
| Manufacturer: | Crydom Co. |
| Product Category: | Relay Sockets |
| Available Quantity: | 9080 Pieces |
| Unit Price: | Quote by Email |
| Description: | Relay Socket Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCBSED Datasheet |
| Internal Part Number | 898-PCBSED | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Declaration of Conformity | |
| 3D Model | PCBSED.stp PCBSED.sat PCBSED.dwg | |
| Online Catalog | Crydom Co. Sockets | |
| Category | Relays | |
| Family | Relay Sockets | |
| Manufacturer | Crydom Co. | |
| Series | LifePlus ED | |
| Part Status | Active | |
| Type | Socket | |
| Number of Positions | 5 | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| For Use With/Related Products | ED Series | |
| Features | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCBSED | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCBSED is in stock for immediate shipping now. We are the distributor of Crydom Co. all series components. The condition of PCBSED is new and unused, you can buy PCBSED Crydom Co. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCBSED.
