| Manufacturer Part Number: | PCA9698BS,118 |
|---|---|
| Manufacturer: | NXP Semiconductors |
| Product Category: | Interface - I/O Expanders |
| Available Quantity: | 13134 Pieces |
| Unit Price: | Quote by Email |
| Description: | I/O Expander 40 I²C 1MHz 56-HVQFN (8x8) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCA9698BS,118 Datasheet |
| Internal Part Number | 898-PCA9698BS,118 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | I²C Bus Fundamentals Introduction to GPIO Expanders | |
| Featured Product | NXP - I²C Interface | |
| PCN Packaging | Date Code Extended 18/Jul/2013 Lighter Packing Reels 30/Mar/2014 | |
| Online Catalog | I/O Expanders | |
| Category | Integrated Circuits (ICs) | |
| Family | Interface - I/O Expanders | |
| Manufacturer | NXP Semiconductors | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Number of I/O | 40 | |
| Interface | I²C | |
| Interrupt Output | Yes | |
| Features | POR | |
| Output Type | Open Drain | |
| Current - Output Source/Sink | 10mA, 25mA | |
| Frequency - Clock | 1MHz | |
| Voltage - Supply | 2.3 V ~ 5.5 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

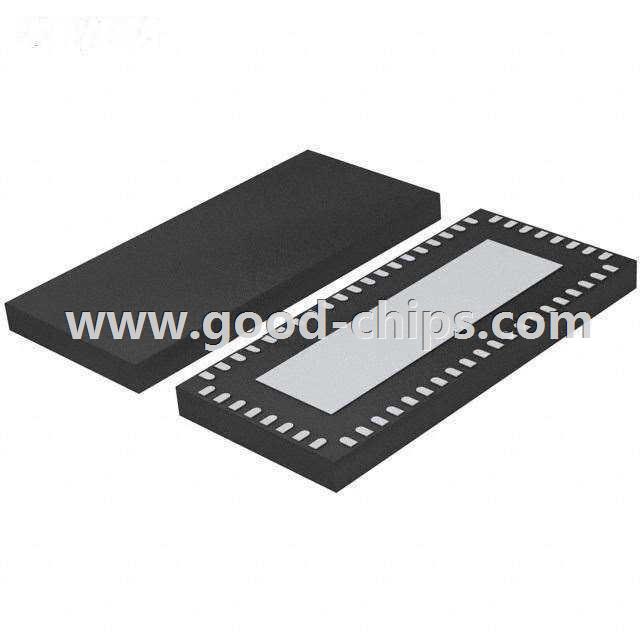

| Package / Case | 56-VFQFN Exposed Pad | |
| Supplier Device Package | 56-HVQFN (8x8) | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCA9698BS,118 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCA9698BS,118 is in stock for immediate shipping now. We are the distributor of NXP Semiconductors all series components. The condition of PCA9698BS,118 is new and unused, you can buy PCA9698BS,118 NXP Semiconductors with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCA9698BS,118.
