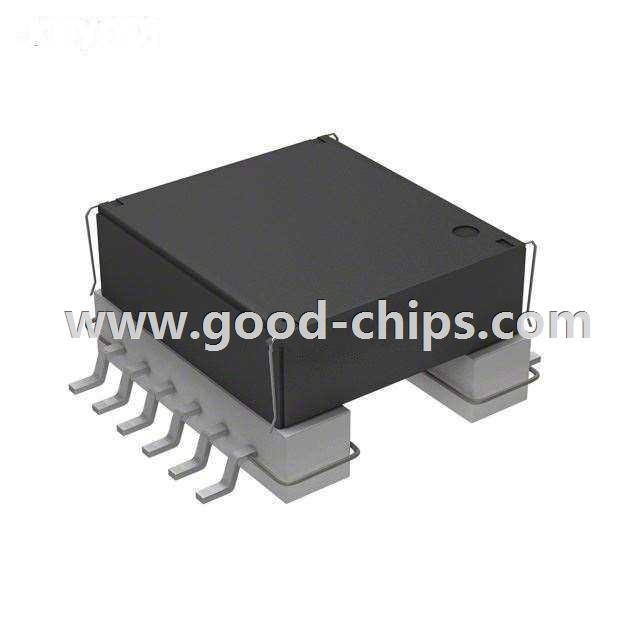

| Manufacturer Part Number: | PCA15EFD-U05S003 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Switching Converter, SMPS Transformers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | INDUCTOR/XFRMR 14.2UH MULTIWIND |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PCA15EFD-U05S003 Datasheet |
| Internal Part Number | 898-PCA15EFD-U05S003 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | PCA Transformer EOL 03/Apr/2015 | |
| Category | Transformers | |
| Family | Switching Converter, SMPS Transformers | |
| Manufacturer | TDK Corporation | |
| Series | PCA15EFD | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Configurable (For DC/DC) | |
| Applications | Capacitor Charger | |
| Intended Chipset | - | |
| Voltage - Primary | - | |
| Voltage - Auxillary | - | |
| Voltage - Isolation | 500Vrms | |
| Frequency | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 18.10mm L x 16.00mm W | |
| Height - Seated (Max) | 9.00mm | |
| Chipset Manufacturer | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PCA15EFD-U05S003 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PCA15EFD-U05S003 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of PCA15EFD-U05S003 is new and unused, you can buy PCA15EFD-U05S003 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PCA15EFD-U05S003.
