| Manufacturer Part Number: | PC851XNNIP0F |
|---|---|
| Manufacturer: | Sharp Microelectronics |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | PC851XNNIP0F Datasheet |
| Internal Part Number | 898-PC851XNNIP0F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | PC851XNxiP0F Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Sharp Microelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Discontinued | |
| Number of Channels | 1 | |
| Voltage - Isolation | 5000Vrms | |
| Current Transfer Ratio (Min) | 40% @ 5mA | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | - | |
| Rise / Fall Time (Typ) | 4µs, 5µs | |
| Input Type | DC | |
| Output Type | Transistor | |
| Voltage - Output (Max) | 350V | |
| Current - Output / Channel | 50mA | |
| Voltage - Forward (Vf) (Typ) | 1.2V | |
| Current - DC Forward (If) (Max) | 50mA | |
| Vce Saturation (Max) | 300mV | |
| Operating Temperature | -25°C ~ 100°C | |
| Mounting Type | Surface Mount | |

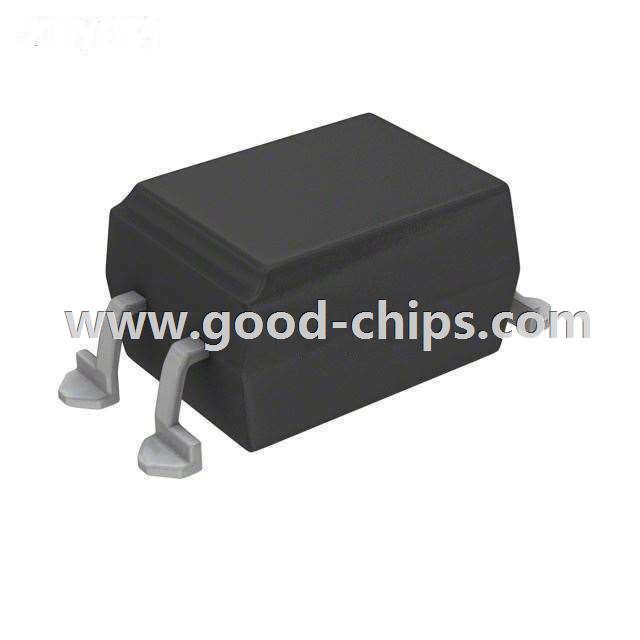

| Package / Case | 4-SMD, Gull Wing | |
| Supplier Device Package | 4-SMD | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | PC851XNNIP0F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
PC851XNNIP0F is in stock for immediate shipping now. We are the distributor of Sharp Microelectronics all series components. The condition of PC851XNNIP0F is new and unused, you can buy PC851XNNIP0F Sharp Microelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PC851XNNIP0F.
