Manufacturer Part Number: | PBC13SBDN |
---|---|
Manufacturer: | Sullins Connector Solutions |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

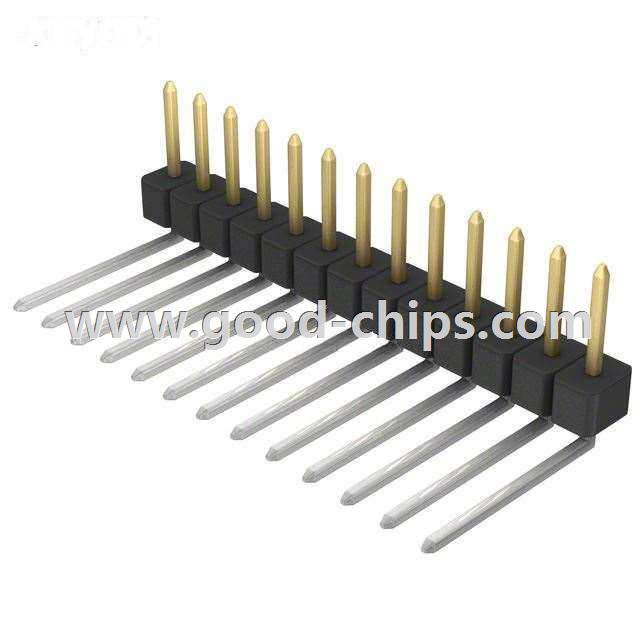

Description: | 13 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | PBC13SBDN Datasheet |
Internal Part Number | 898-PBC13SBDN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | GxC and PxC | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Sullins Connector Solutions | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Unshrouded, Breakaway | |
Number of Positions | 13 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | 0.230" (5.84mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 10µin (0.25µm) | |
Color | Black | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | PBC13SBDN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
PBC13SBDN is in stock for immediate shipping now. We are the distributor of Sullins Connector Solutions all series components. The condition of PBC13SBDN is new and unused, you can buy PBC13SBDN Sullins Connector Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for PBC13SBDN.
